Description

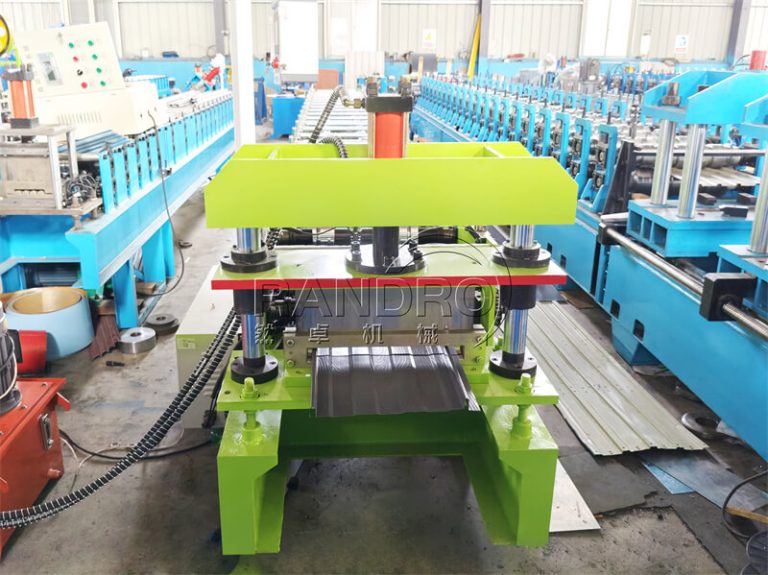

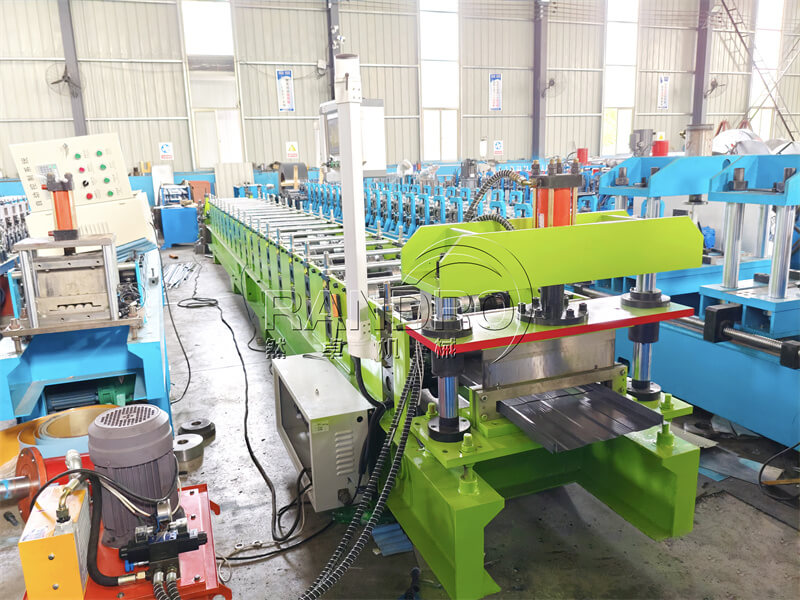

The standing seam snap lock roof panel roll forming machine is a cold bending forming machine used to produce snap lock self-lock panels. The thickness range is normally 0.2-0.mm, and different specifications can be customized according to different design requirements. This standing seam snap lock roofing panel machine is mainly used for the construction of roof panels, which are aesthetically pleasing and facilitate drainage.
Characters
High-Quality Locking Seam
High Molding Quality
Compact Design
Excellent Wind Resistance
Intelligent Control
Independent Embossing

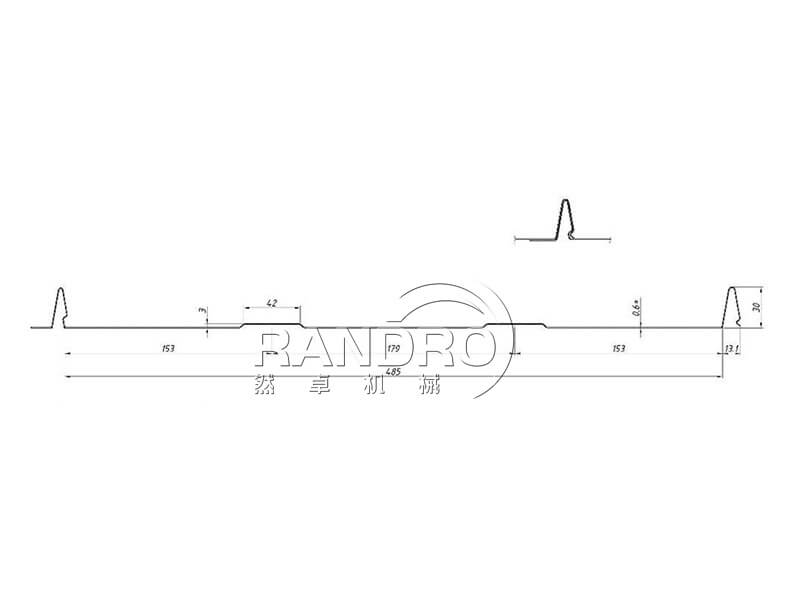

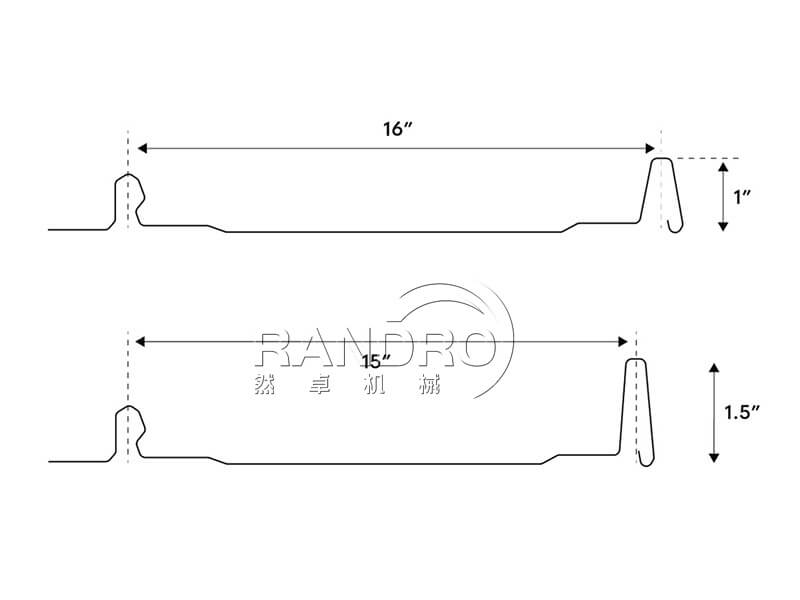

Design Drawing

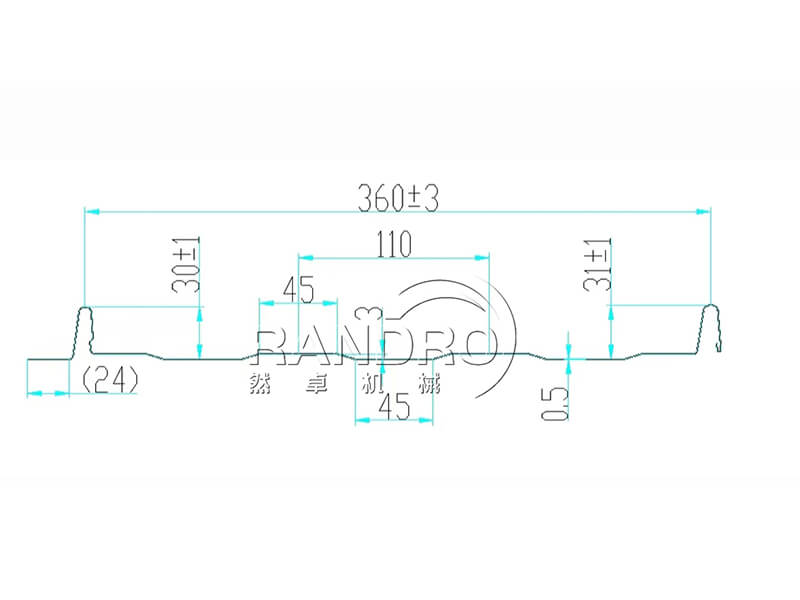

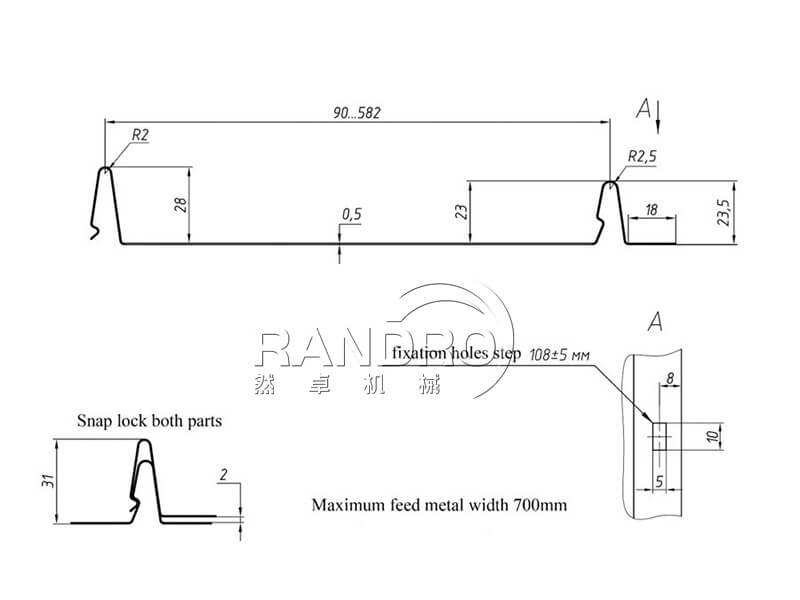

The following are some design drawings of a standing seam self-lock snap lock roofing panel roll forming machine. This design is not unique and fixed. Randro factory can customize it according to your needs. If you have more needs, please contact us for more information.

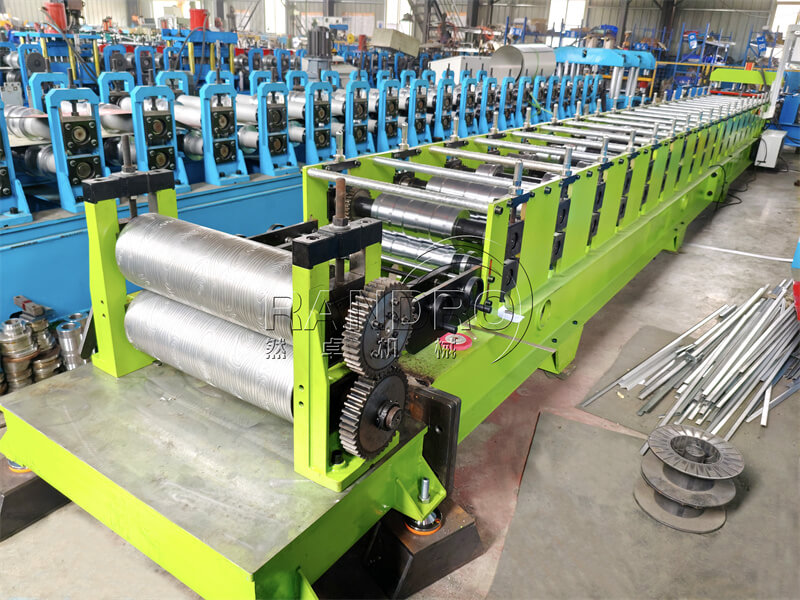

Workflow
Uncoiler Machine
Enter Guide
Embossing Wheel
Roll Forming Part

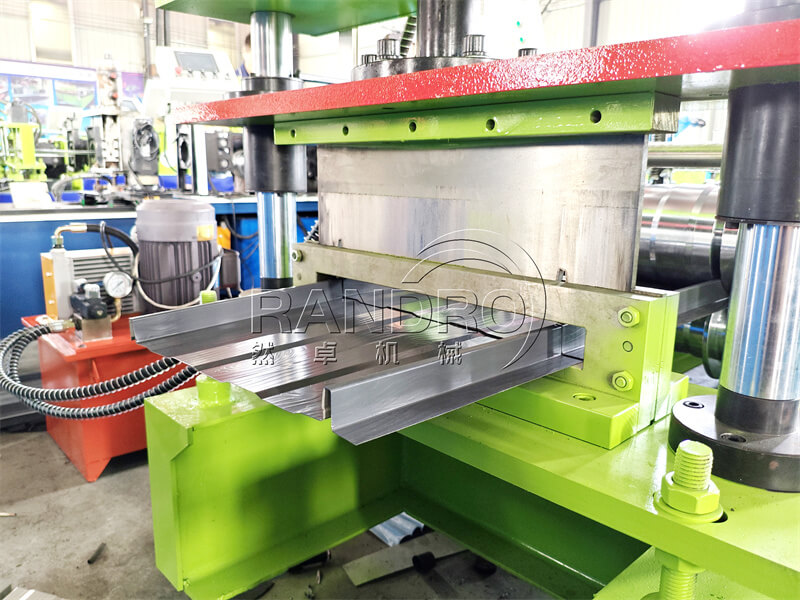

Hydraulic Cutting
Run Out Table

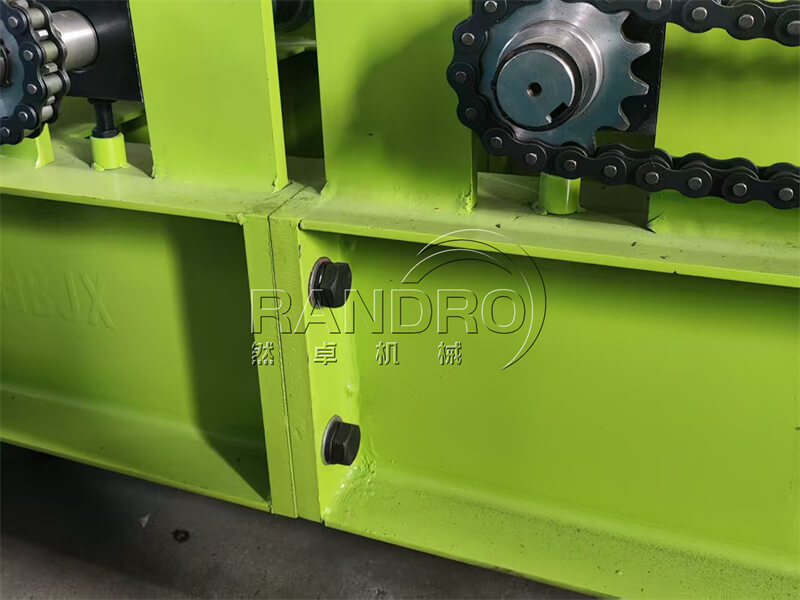

Product Details

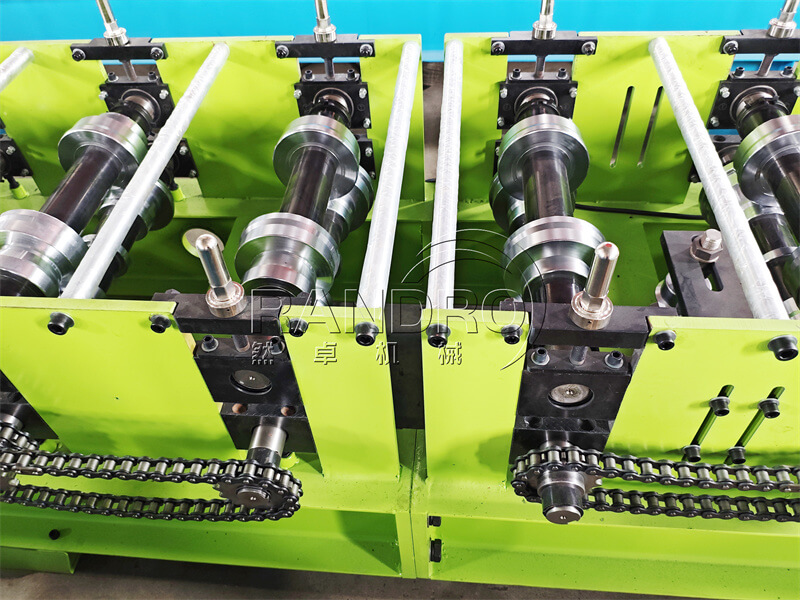

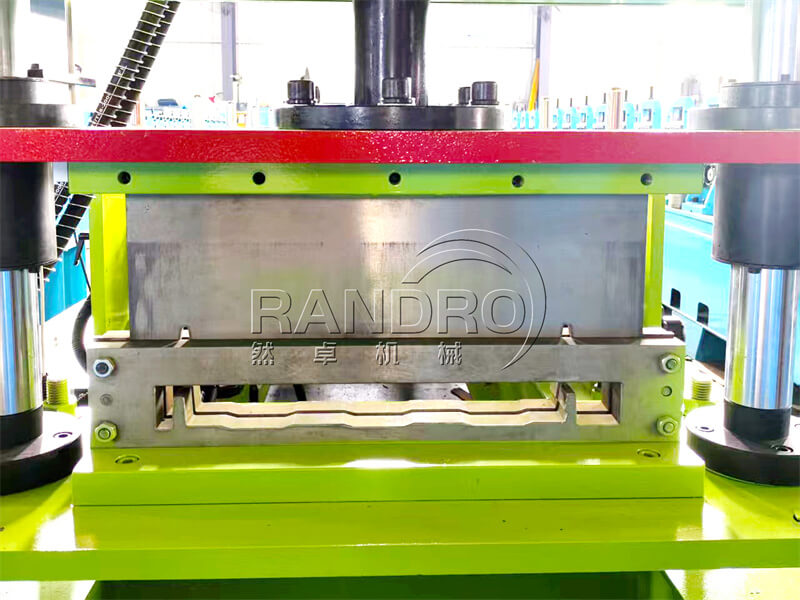

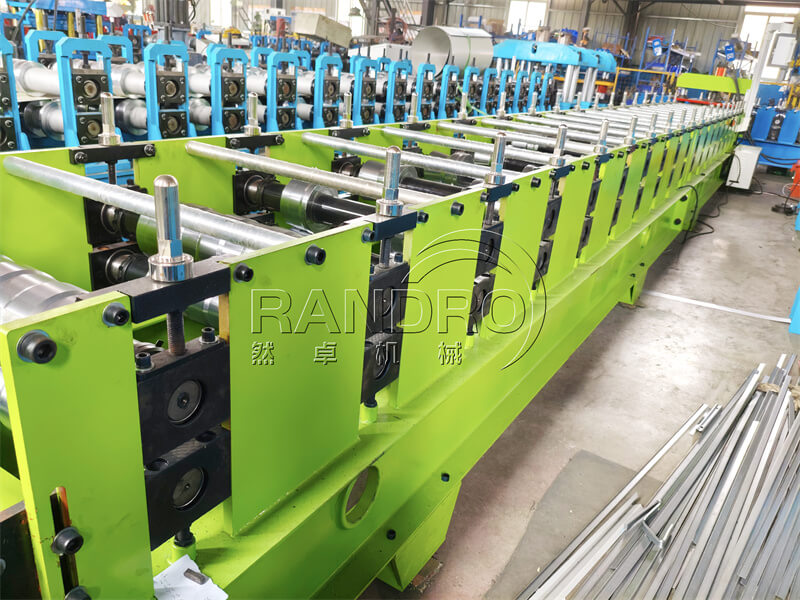

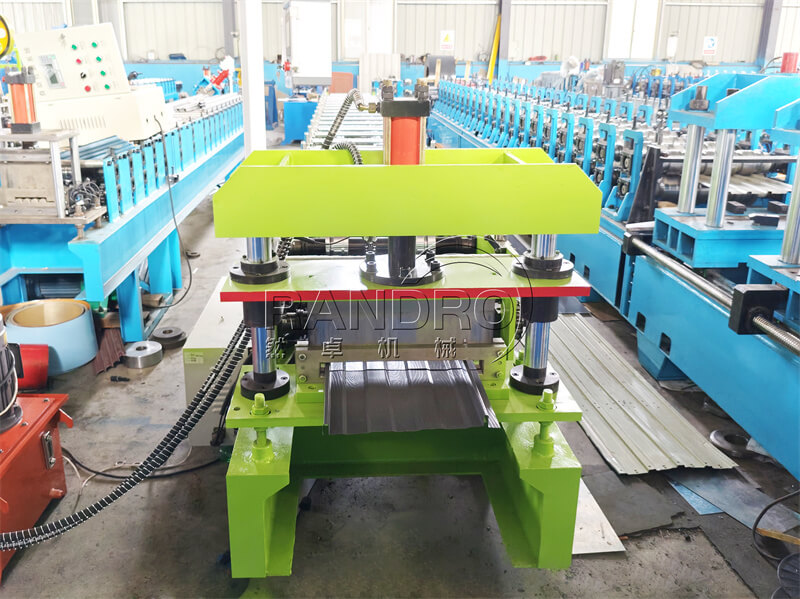

The standing seam self-lock snap lock roofing panel roll forming machine is assembled with high-quality components, such as CR12 hydraulic shears, a 350H main frame, 1.0-2.0mm chains, and 12-14mm thick intermediate plates. The snap lock forming machine uses a two-section splicing method, which facilitates loading into containers for handling and transportation.

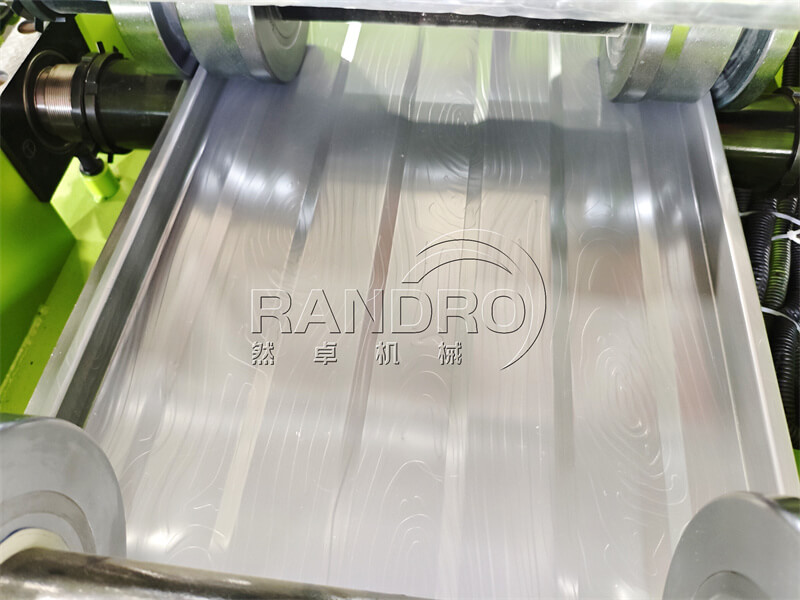

Profile Display
The finished panels produced by the standing seam snap lock roofing panel roll forming machine are very smooth, precisely pressed by rollers, and are indistinguishable from the design drawings. They can be compared by measurement.

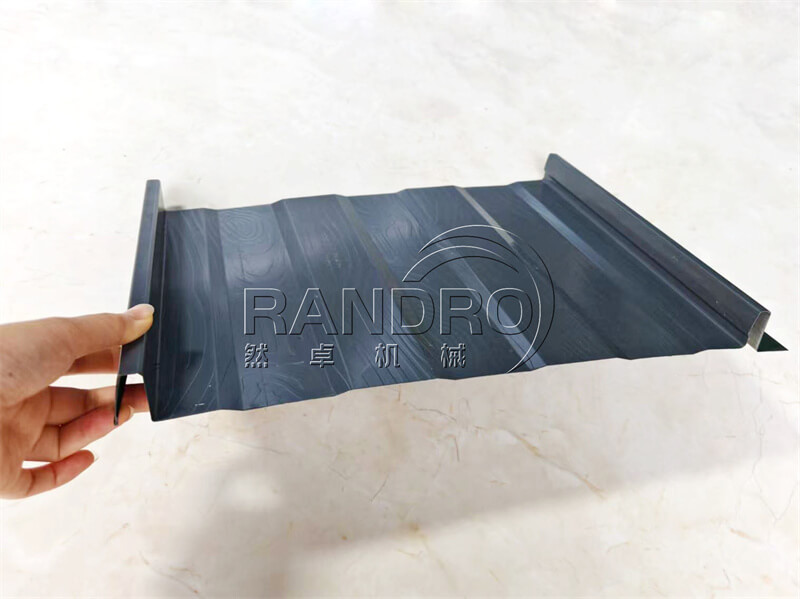

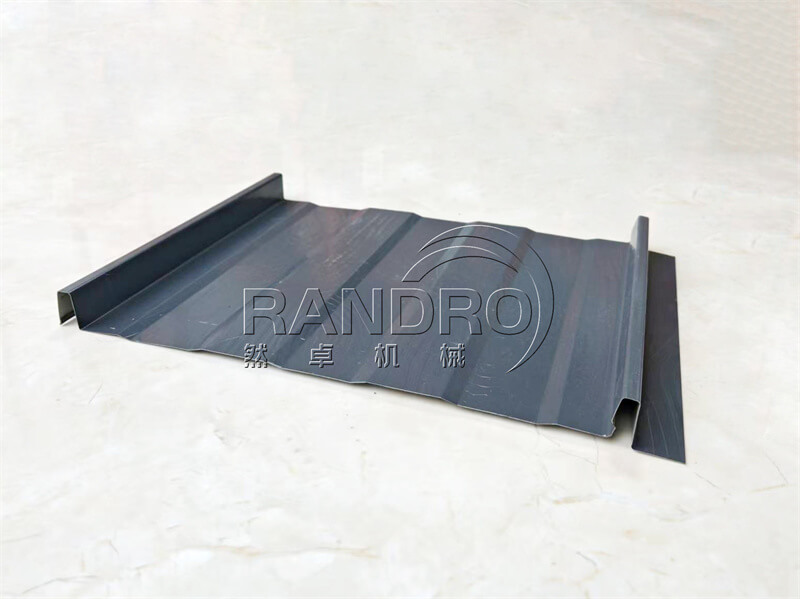

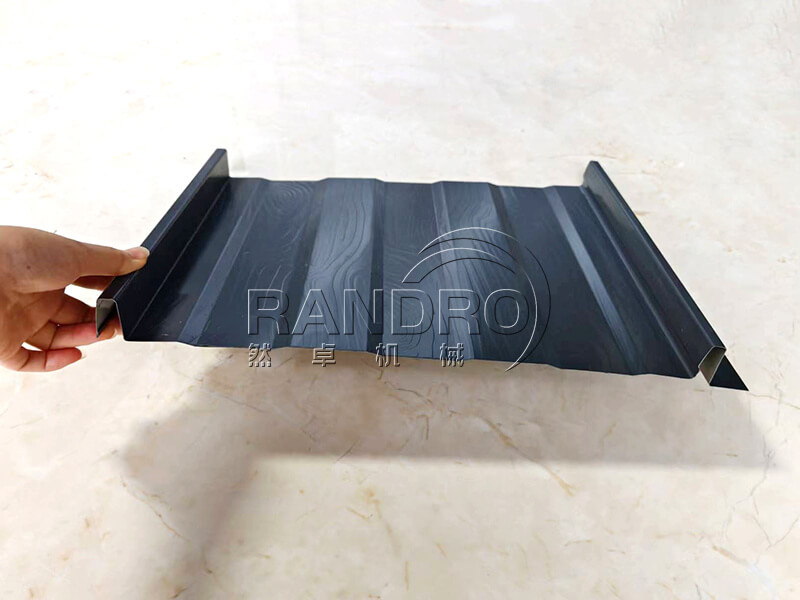

Finished Product
The following are the final products from the standing seam snap lock roofing panel roll forming machine. The finished product is aesthetically pleasing, smooth, and burr-free, and can be viewed from multiple angles. As shown in the picture, the panel surface has a pattern, which can be customized; simply provide the corresponding design.
Main Components
Hydraulic Decoiler with coil car
Feeding Guide
Leveling System
Roll Forming System
Hydraulic Stop Cutter
Control System
Run-out Table

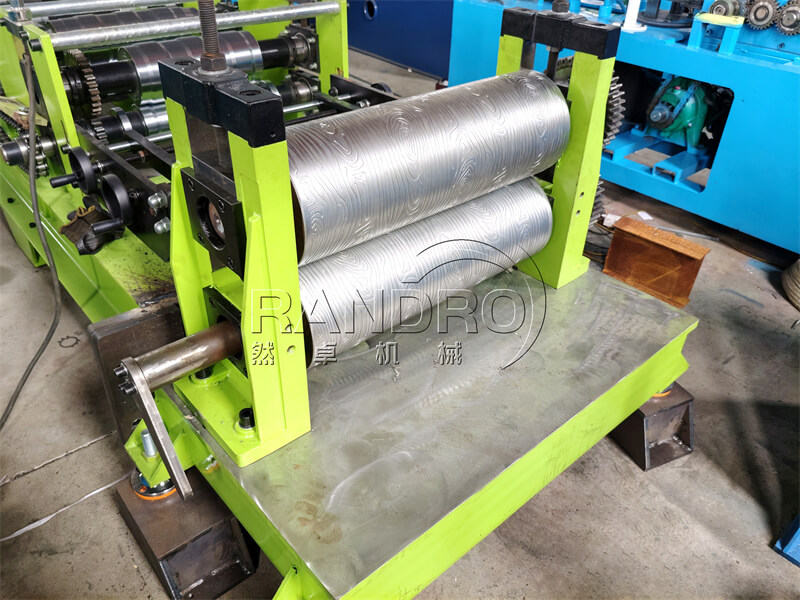

Embossed Design
The independent embossing wheel and image design of the standing seam snap lock roofing panel roll forming machine are shown in the figure below. The upper and lower wheel design can be designed from drawings. The roll material is first pressed by the embossing wheel, then pressed step by step by the roller, and finally cut.
Application
