Description
Randro solar photovoltaic bracket roll forming machine is a specialized piece of equipment used for the large-scale production of photovoltaic bracket metal profiles. It typically includes units such as a feeding machine, a leveling machine, a servo feeder, a punching machine (for punching holes), a forming main unit (multi-pass roll forming), and a cutting machine. The Unistrut C Channel Forming Machine uses an efficient and continuous plastic processing technology to process metal coils into the required specific cross-sectional shapes.
Characters
Customized Production
High Production Speed
High Automation
Automatic Control System
Multi-Pass Molding
Modular Design

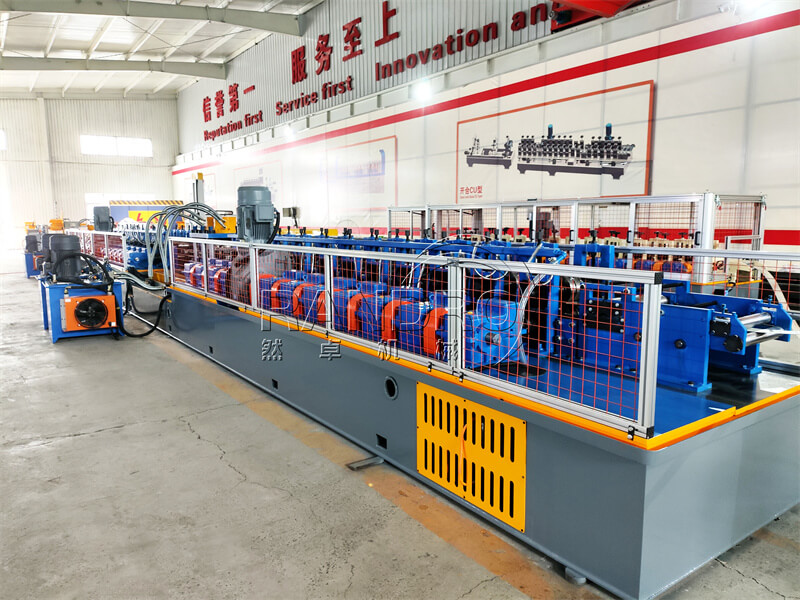

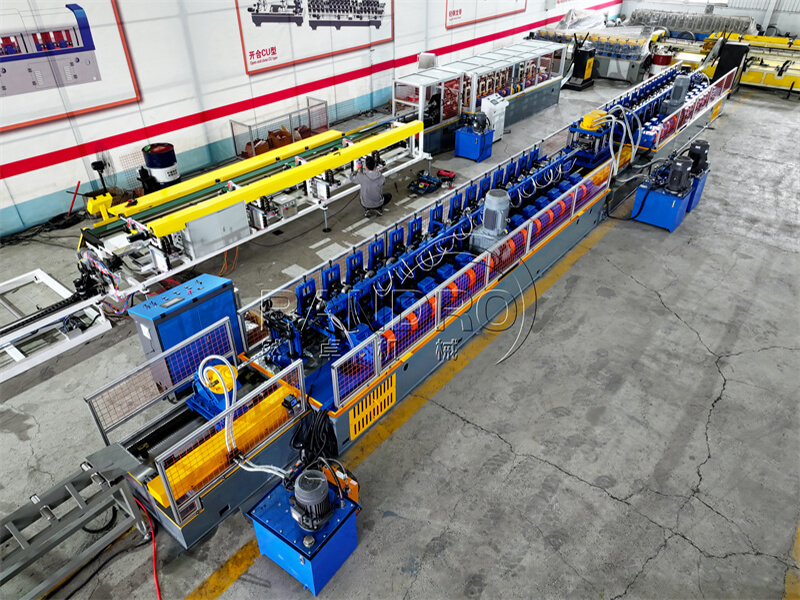

Product Structure

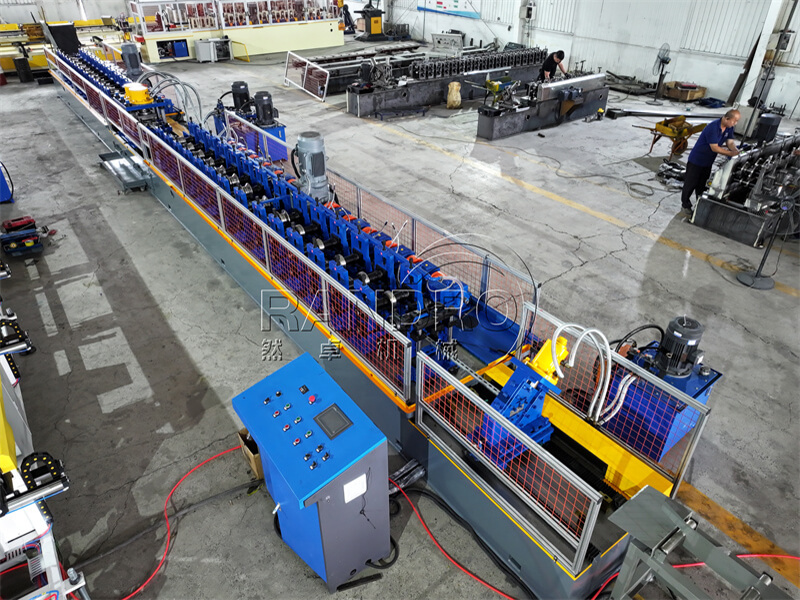

The Unistrut C-channel roll forming machine consists of a main roll forming machine and a finished product conveying mechanism. After the high-speed photovoltaic bracket forming machine rolls and shears the finished product, it is received and conveyed by the finished product conveying platform, so as to better pack and stack it.
Product Details

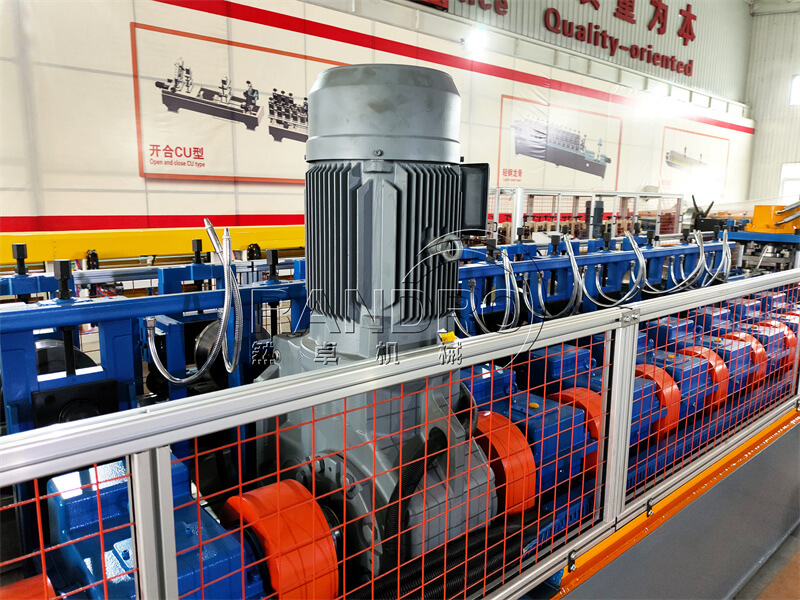

The Unistrut C Channel Purlin Roll Forming Machine features superior details such as a fast, non-stop shearing design, a high-power motor, a leveling device, chrome-plated and hardened rollers, and a gearbox design, ensuring smooth and stable operation of the photovoltaic bracket forming machine.

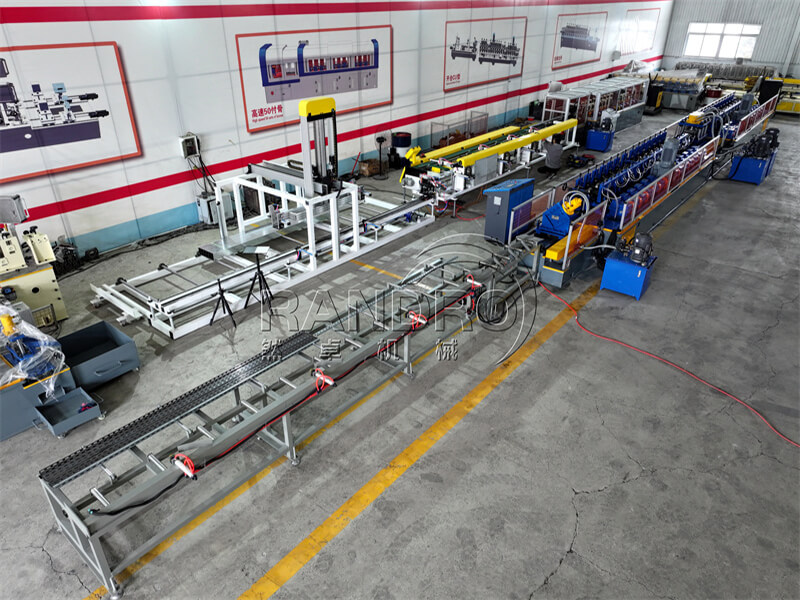

Workflow
Decoiler Machine
Leveling Device
Punching Device
Roll Forming Part
Non-stop Cutting

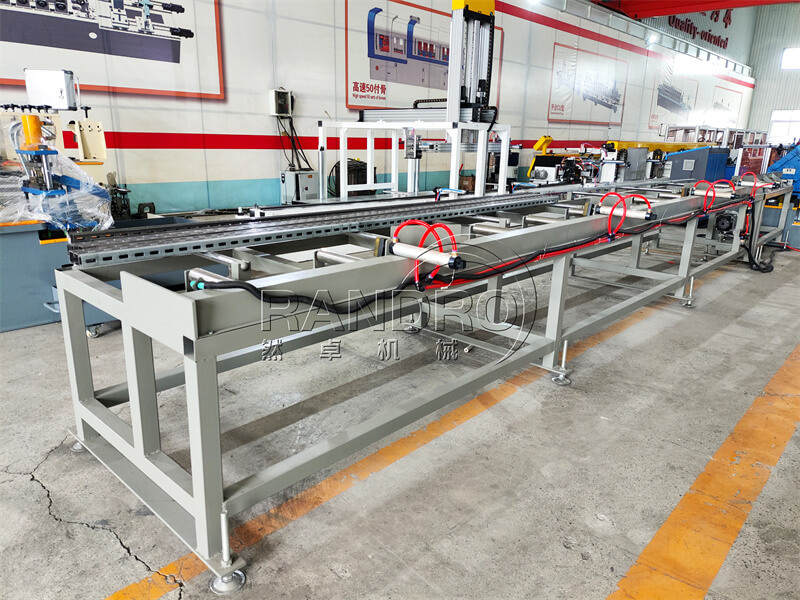

Run Out Table

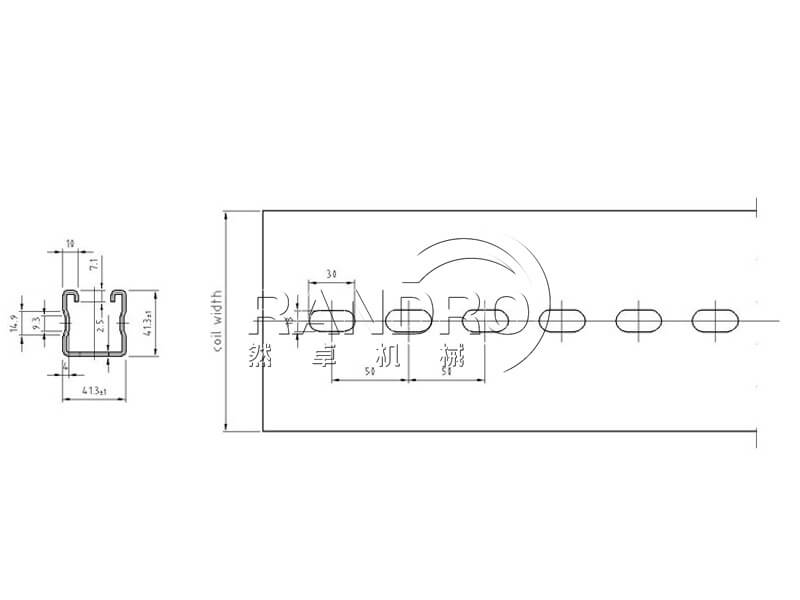

Profiled Design

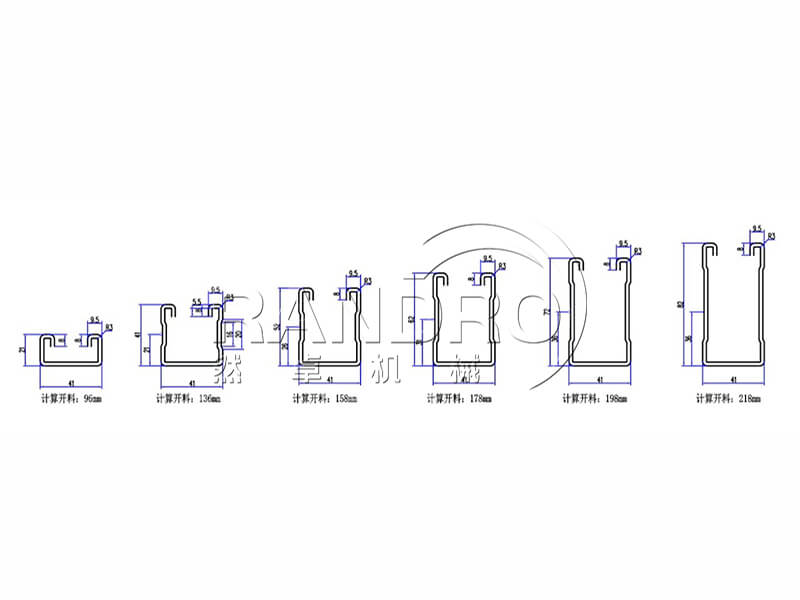

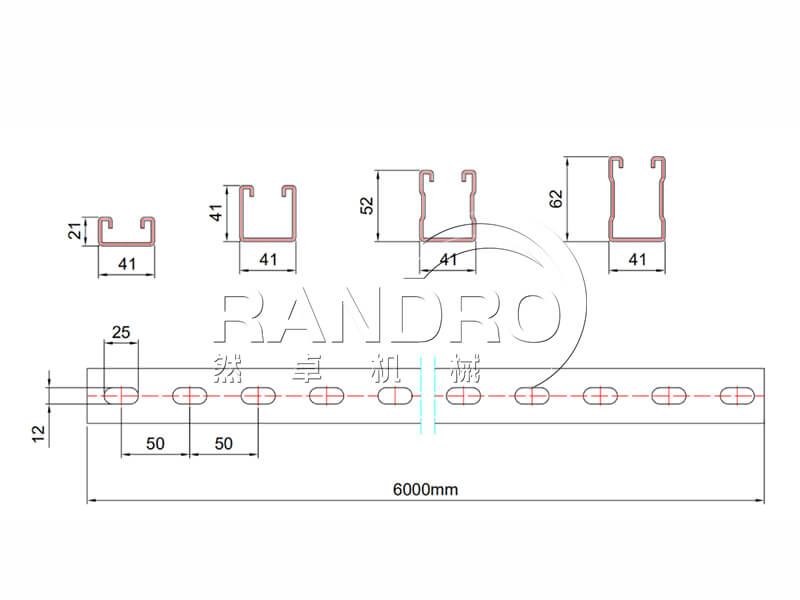

Unistrut C-channel Purlin roll forming machine can produce finished photovoltaic brackets of the same width, with various customizable heights such as 41*21mm, 41*41mm, 41*52mm, and 41*62mm. We offer holeless, punched, and serrated designs. Please contact us for more information.

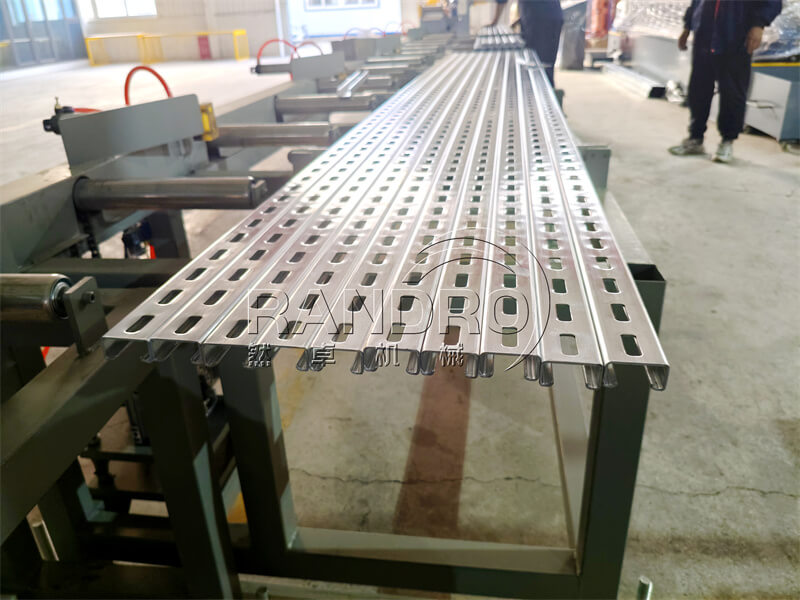

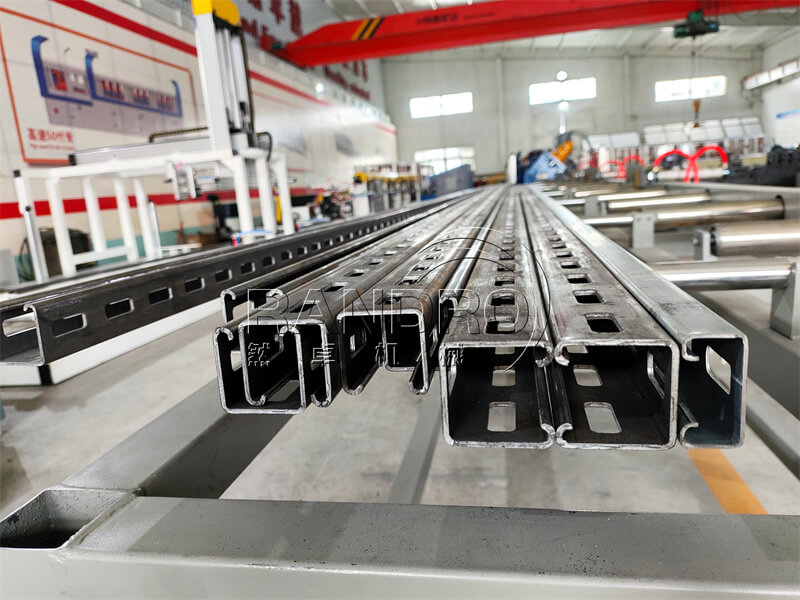

Finished Product

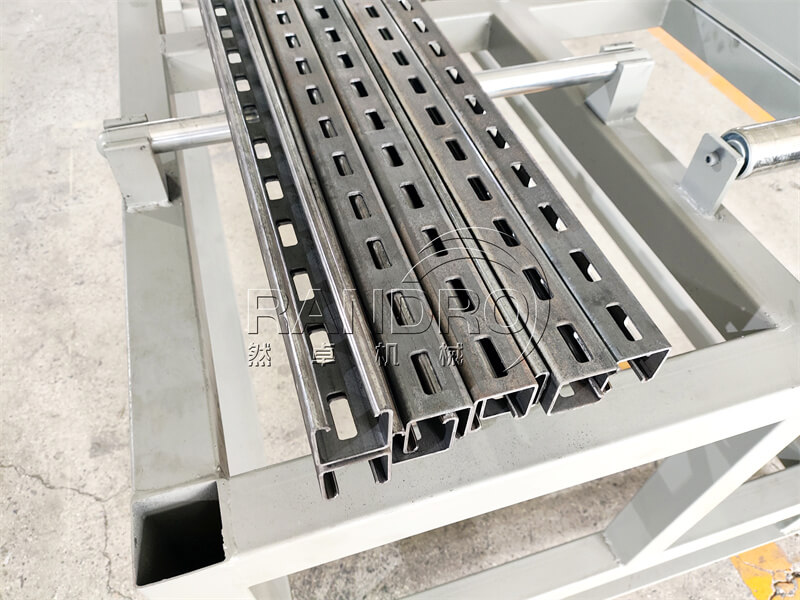

The finished products from the Unistrut C Channel Purlin Roll Forming Machine are smooth and burr-free. They feature a design with the same bottom width but different heights, and can be designed with either bottom punching or side punching. The product effect is excellent. Below are some finished product images.
Main Components
Decoiler Machine
Leveling Device

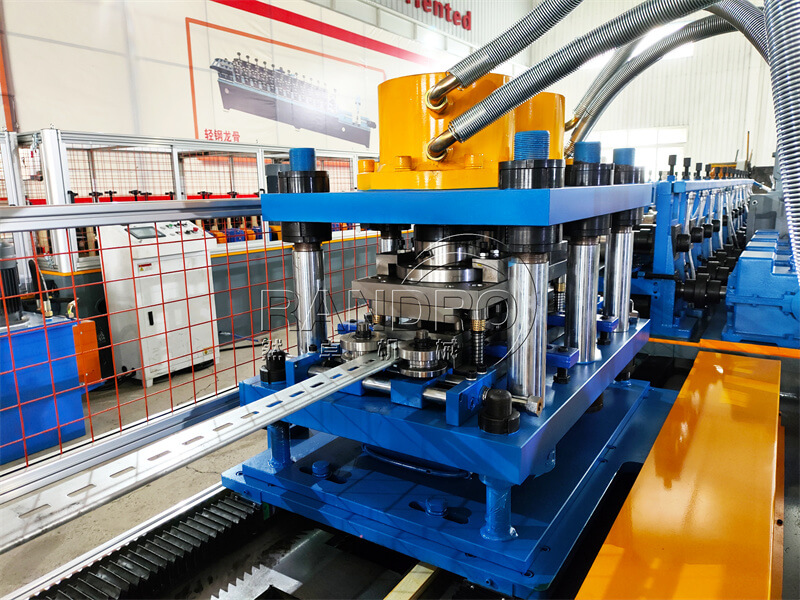

Hydraulic Punching

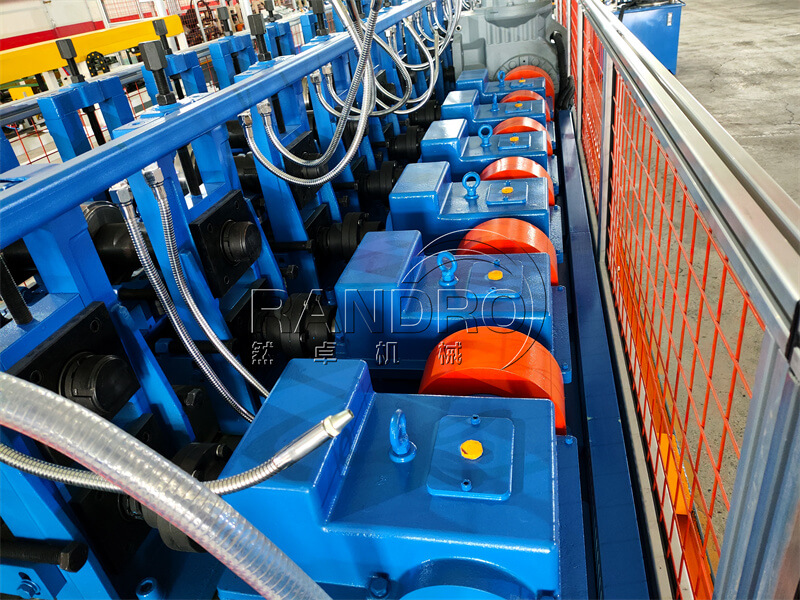

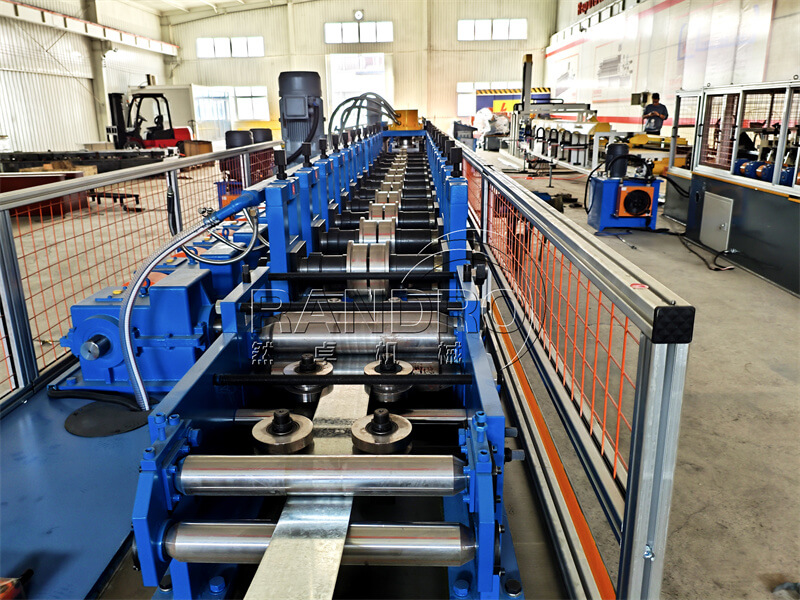

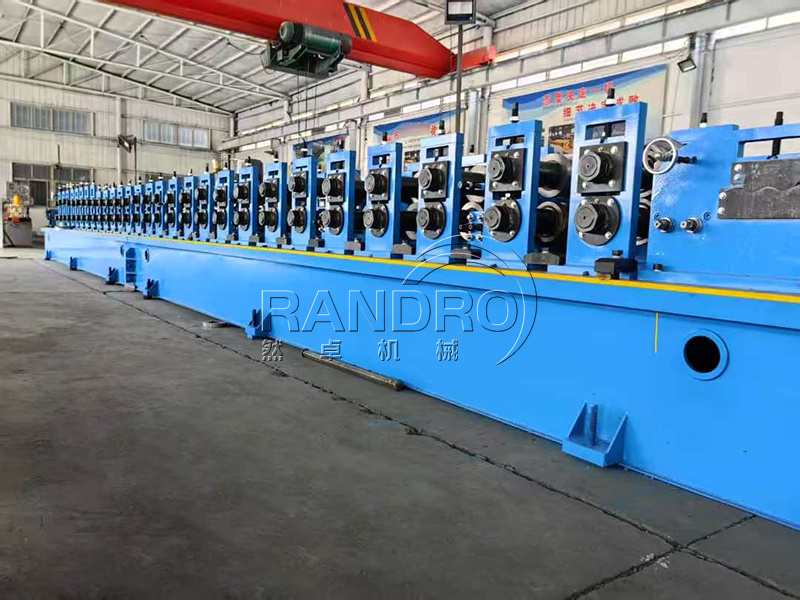

Roll Forming Part

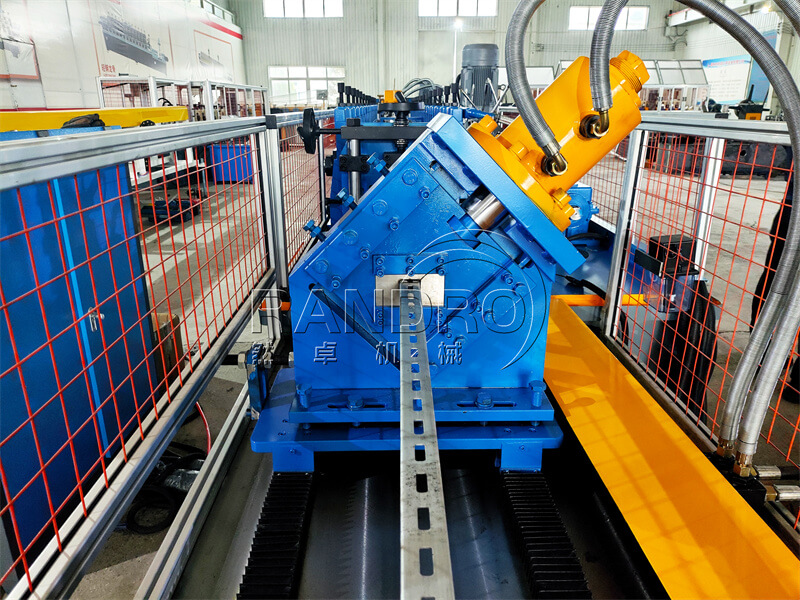

Hydraulic Non-stop Cutting

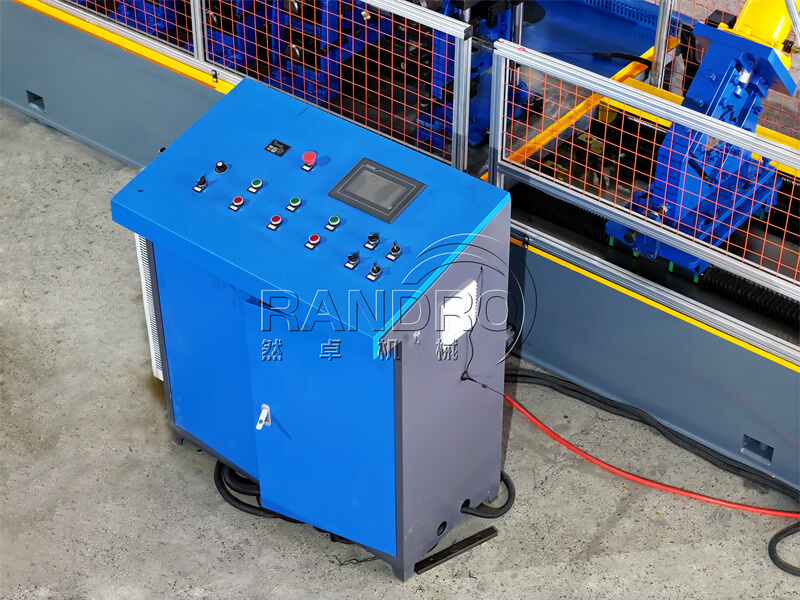

Control System(Delta)
Output Table
Configuration

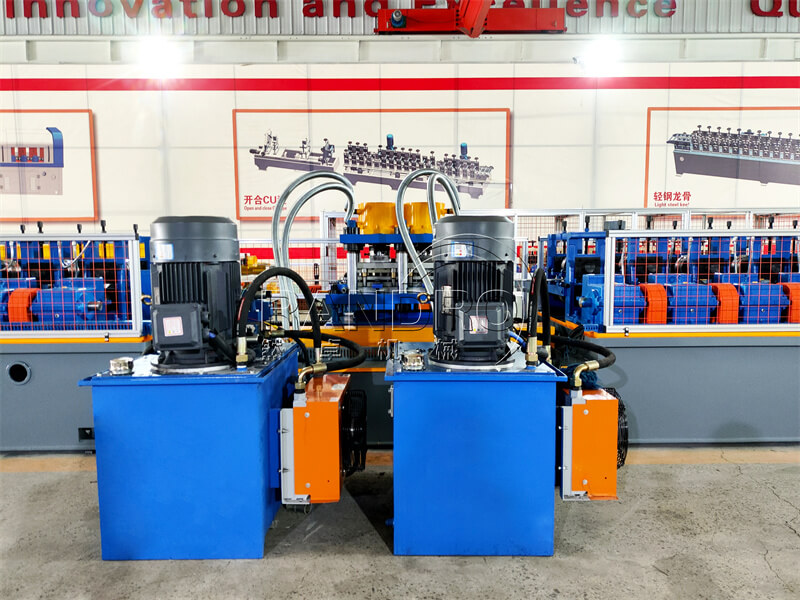

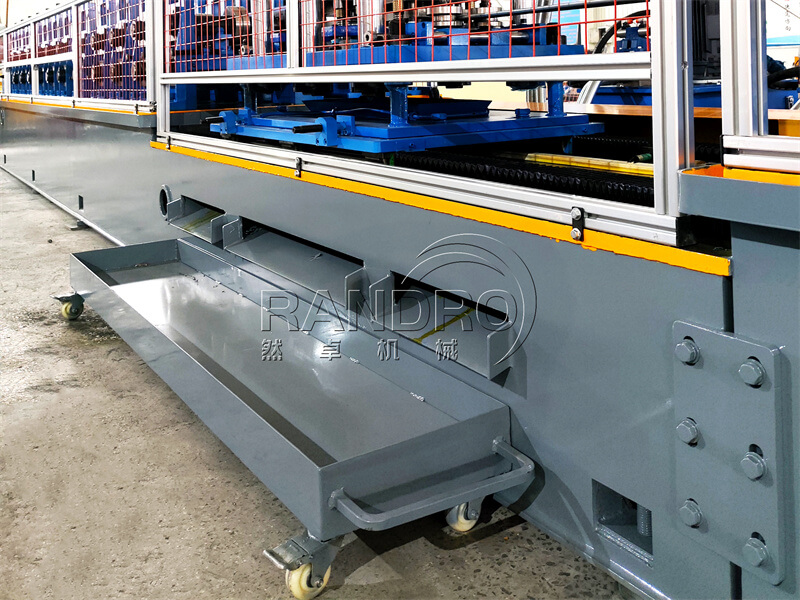

The Unistrut C Channel purlin roll forming machine is powered by dual hydraulic pump stations, equipped with advanced punching devices, independent control cabinets, and a patented waste collection system, making the entire Unistrut C Channel purlin roll forming machine production line more advantageous.

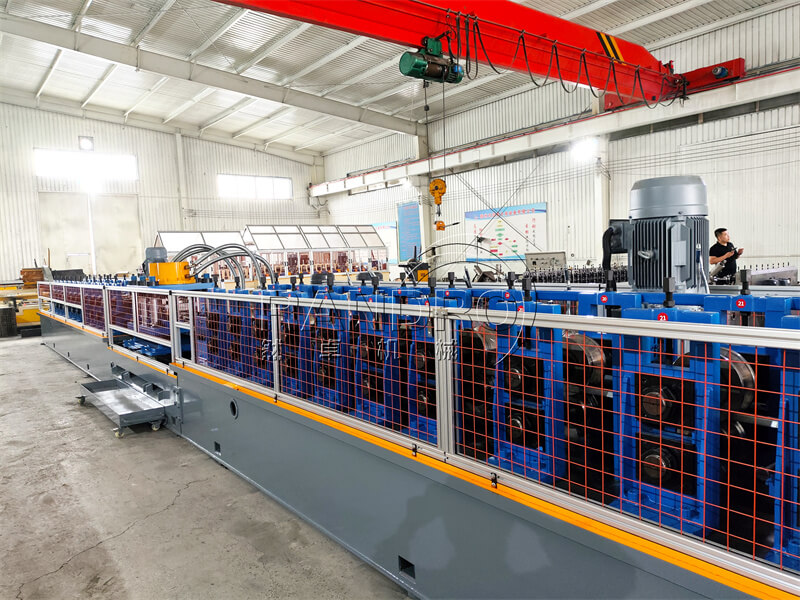

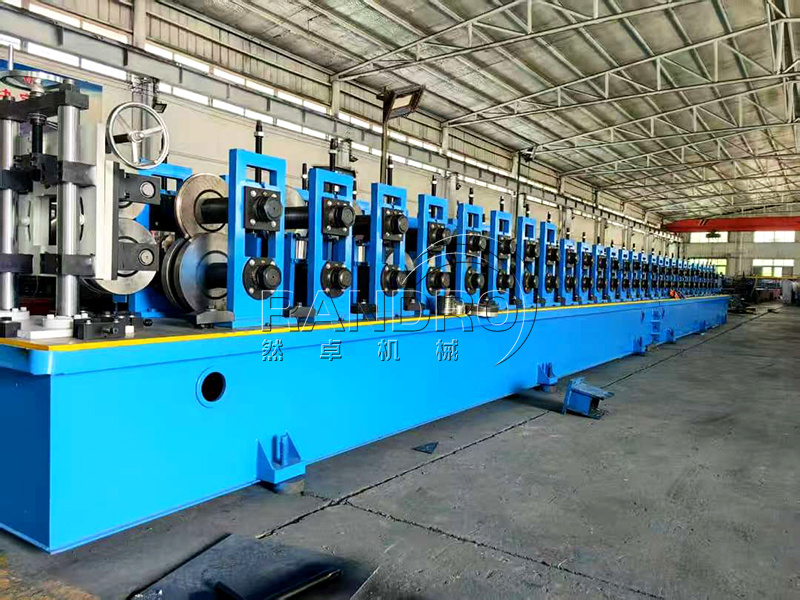

More Photos
Application
