Description
The electrical control box roll forming machine is a highly efficient automated equipment specifically designed for the mass production of electrical control box enclosures. It uses a continuous roll forming process to directly process coiled materials (typically galvanized steel sheets, stainless steel sheets, etc.) into the frame or complete enclosure of the electrical control box. It is one of the key pieces of equipment in the modern sheet metal processing industry’s move towards automation and intelligence. The electrical control box roll forming machine integrates the traditional multi-step discrete processes of “shearing→punching→bending→welding” into a single, highly efficient continuous production line. The width and thickness of the electrical control cabinet enclosure can be customized, offering strong flexibility.
Characters
High Productivity
High Automation
Flexible Conversion
High Precision
High Utilization Rate
Fixed-Length Cutting
Product Details
The electrical control box roll forming machine uses an uncoiler and leveling machine to feed and straighten the coiled material. The material is then punched using a double-acting hydraulic punching system to obtain the initial shape. Afterward, it is processed through the roll forming section, and finally, bending and cutting operations are performed to complete the entire production process of the electrical control box.
The electrical control box roll forming machine is composed of multiple parts, including a dedicated uncoiler, leveling machine, and punching system. The main materials and components used are all high-quality brands, ensuring the machine’s strong performance and ability to produce 100 electrical control boxes per hour, maximizing mass production.

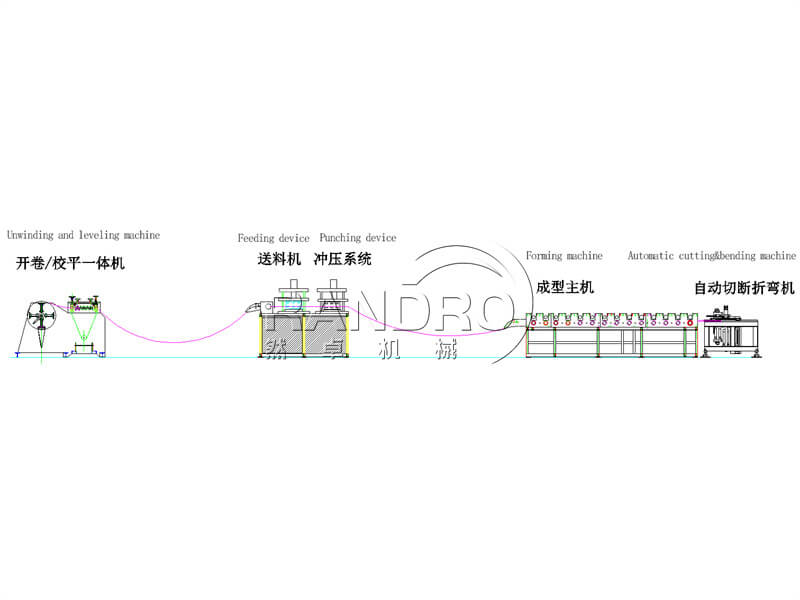

Workflow
Strip Feeding (manual)

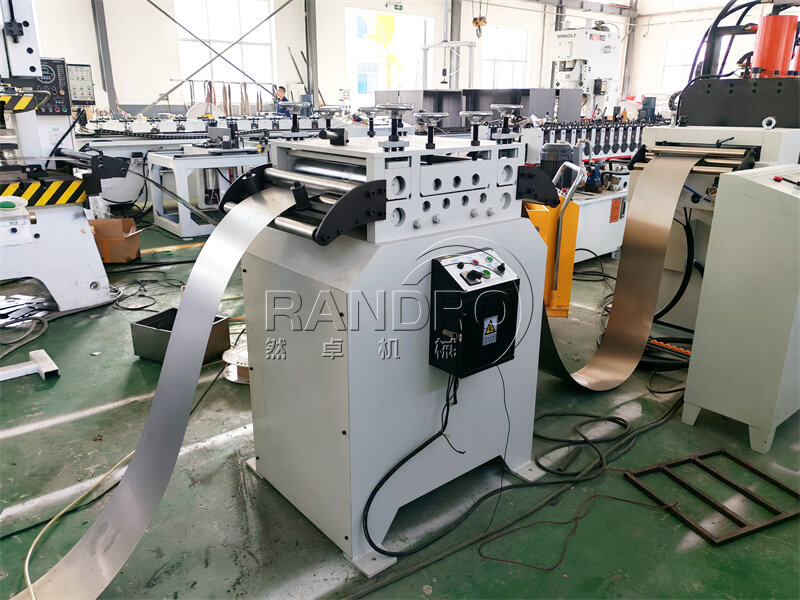

Uncoiling Machine
Leveling Device
Punching Device
Forming Part
Shell Folding
Cutting and Unloading

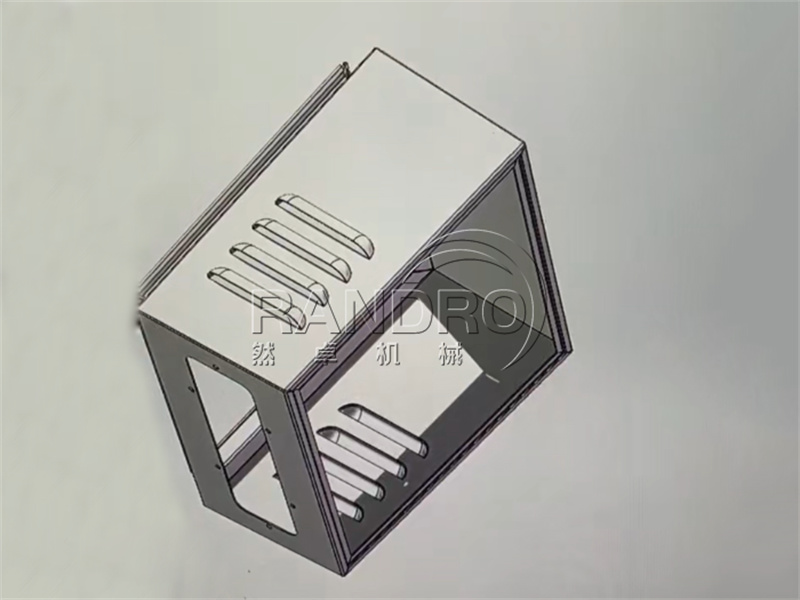

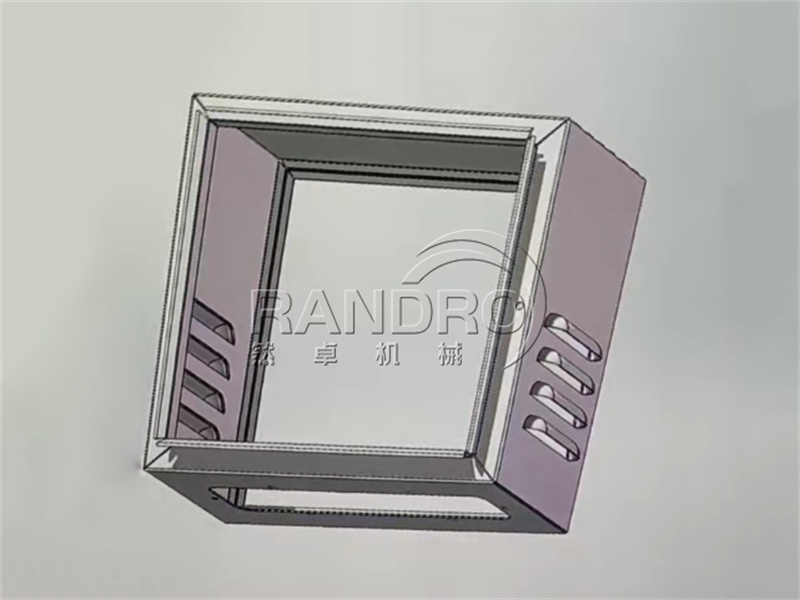

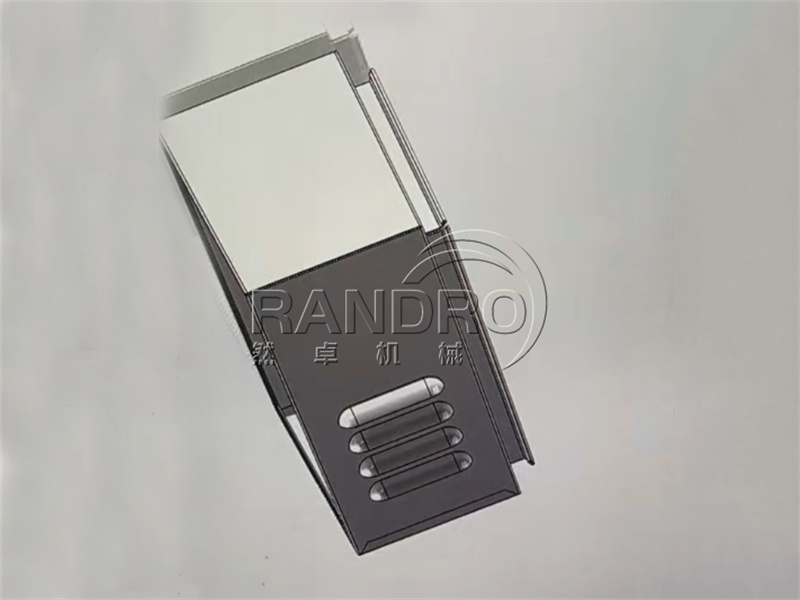

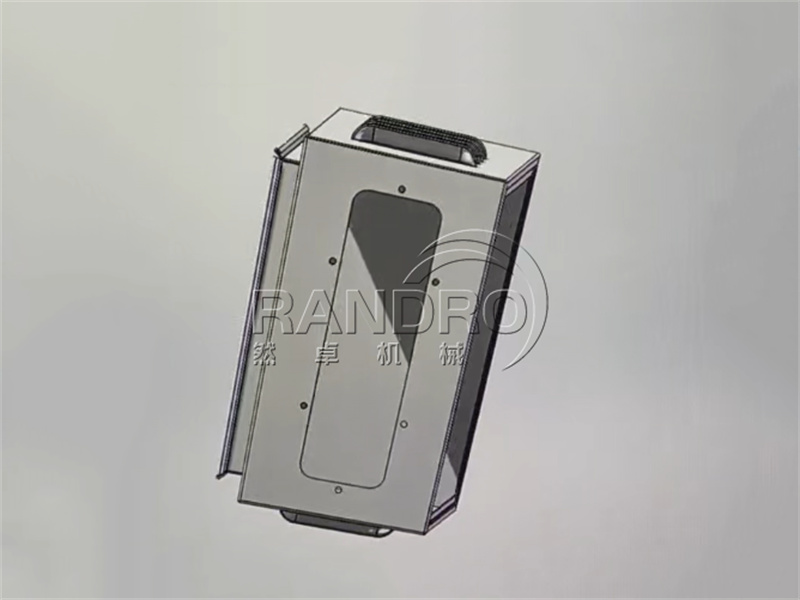

Design Drawing

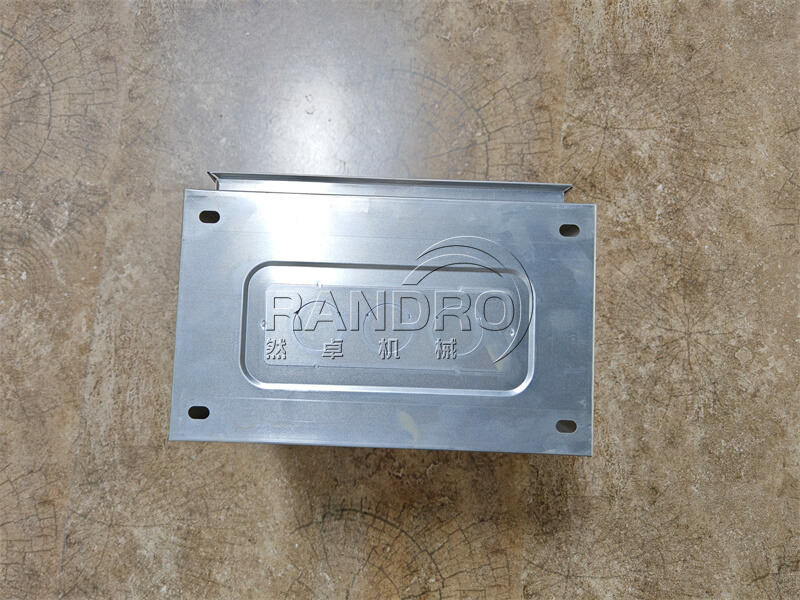

Finished Product

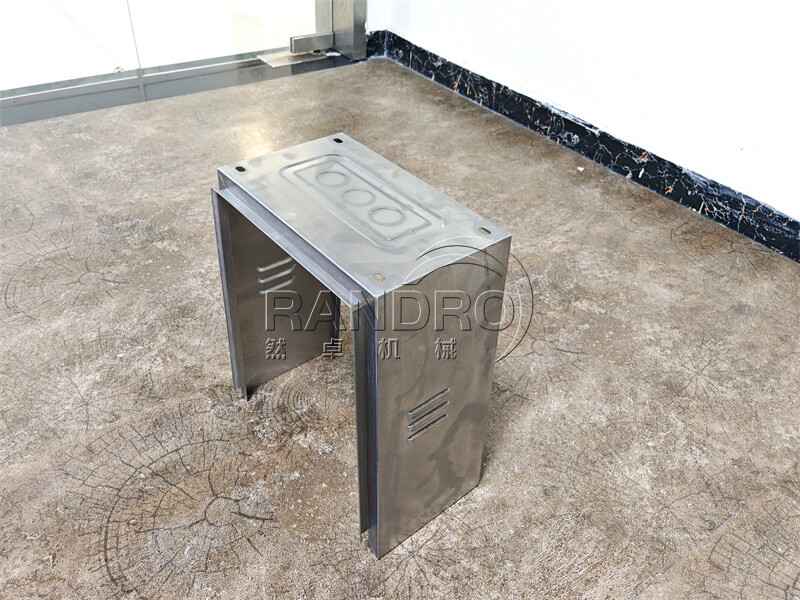

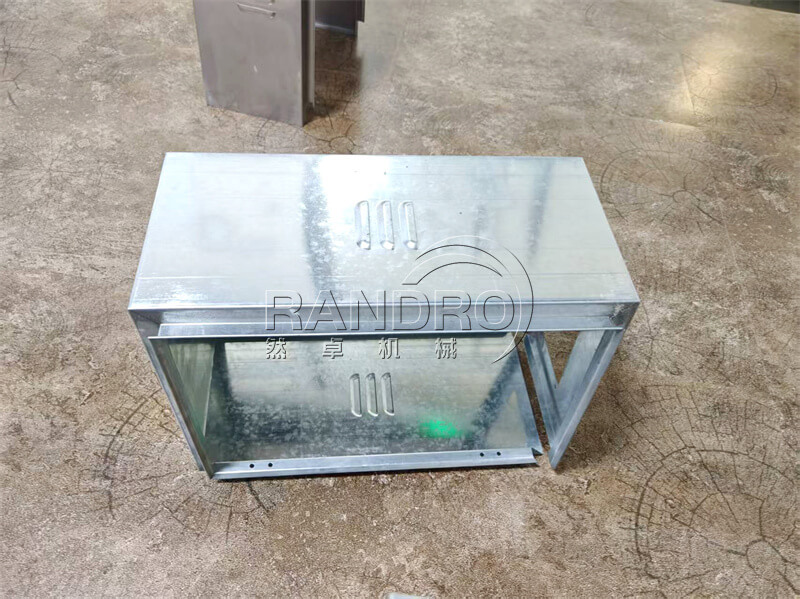

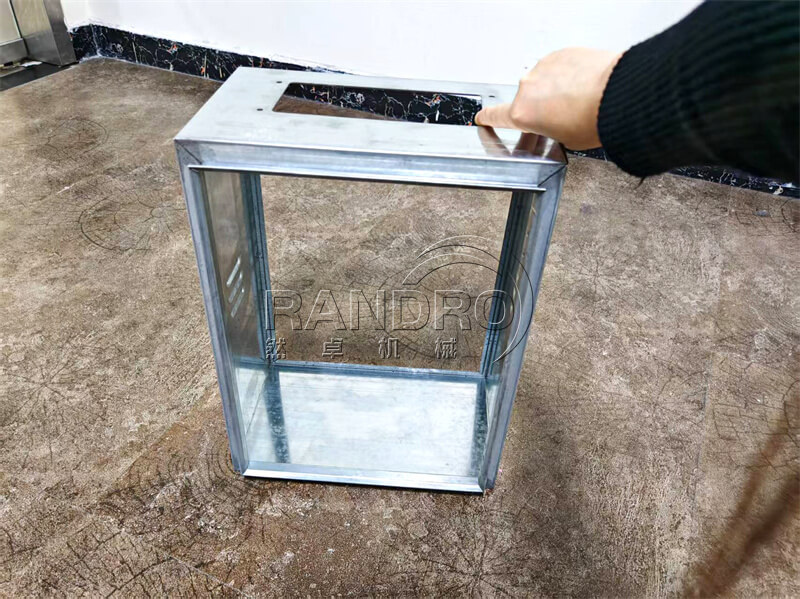

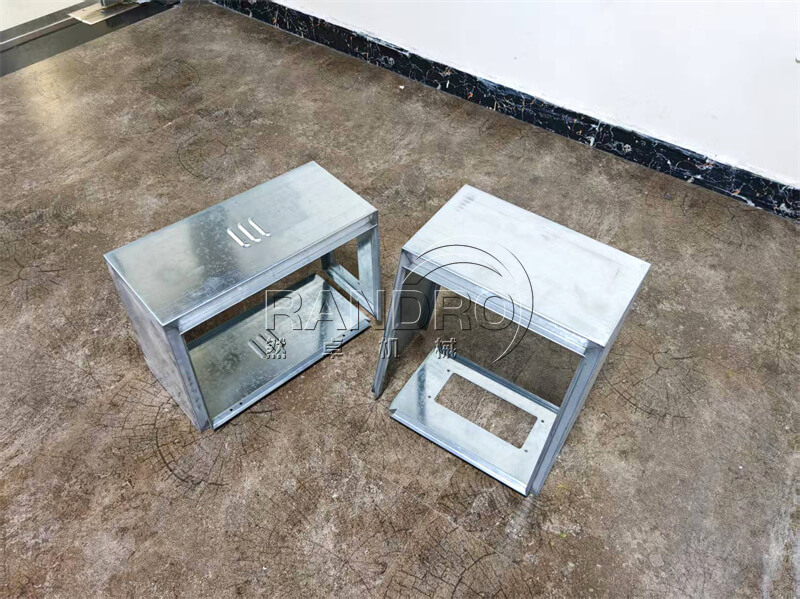

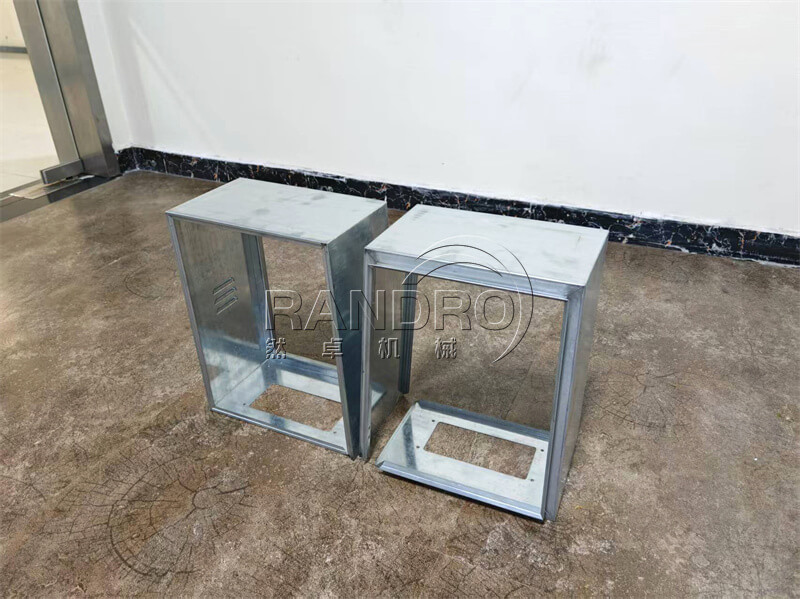

The production speed of the electrically controlled roll forming machine for electrical control boxes is 100 units per hour. The finished electrical control boxes produced are shown in the image below; the products are aesthetically pleasing and free of any defects, requiring only welding for complete assembly.
Main Components

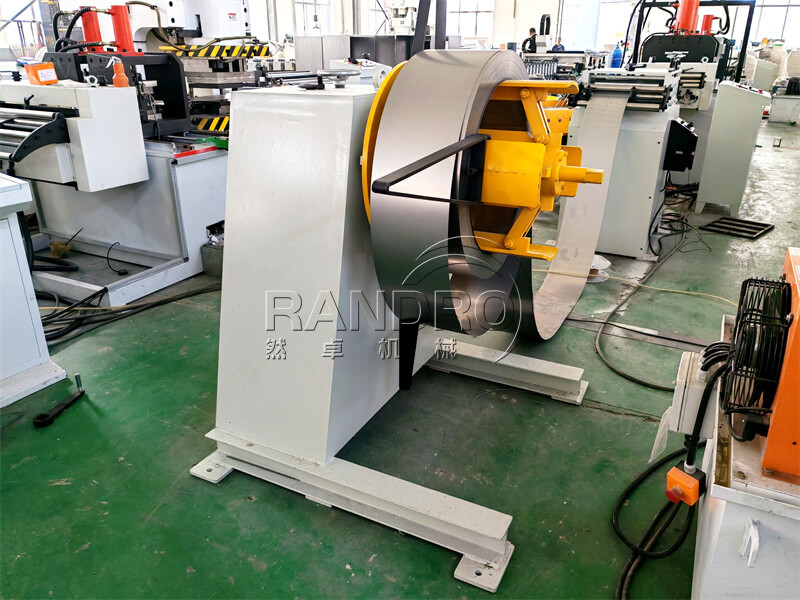

Unwinding & Leveling Machine
Servo Feeding Machine

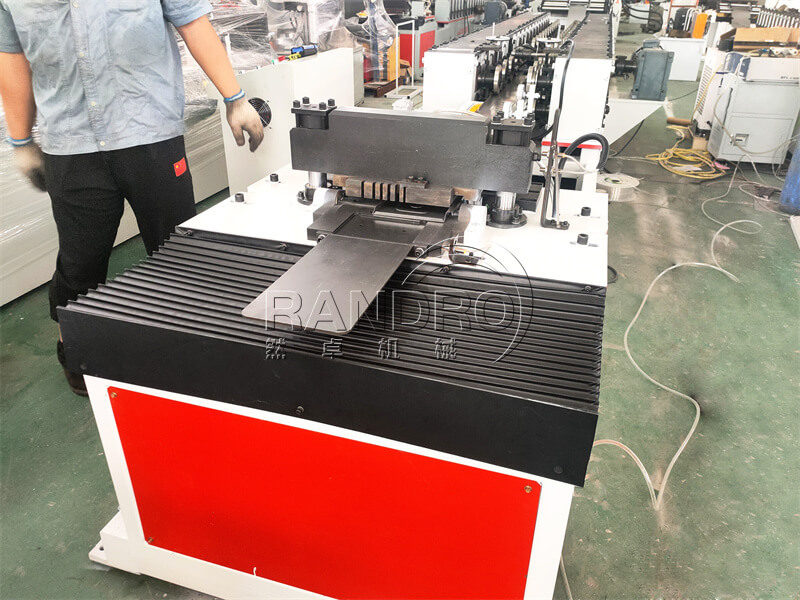

Punching System
Main Forming Unit
Cutting/Bending Part

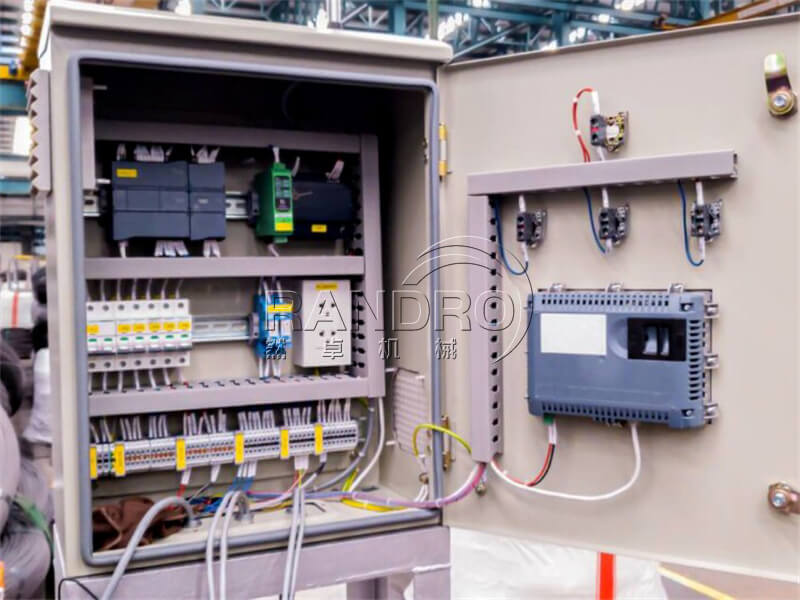

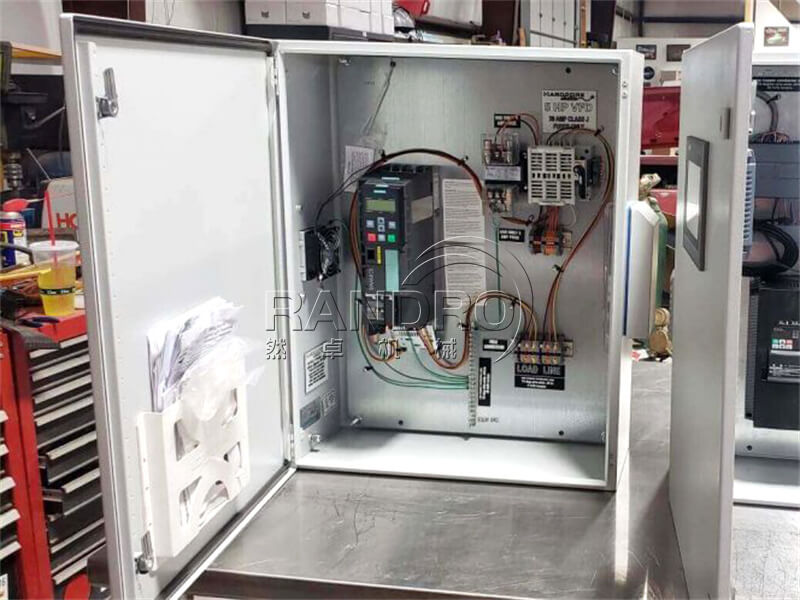

Electrical Control System
Application

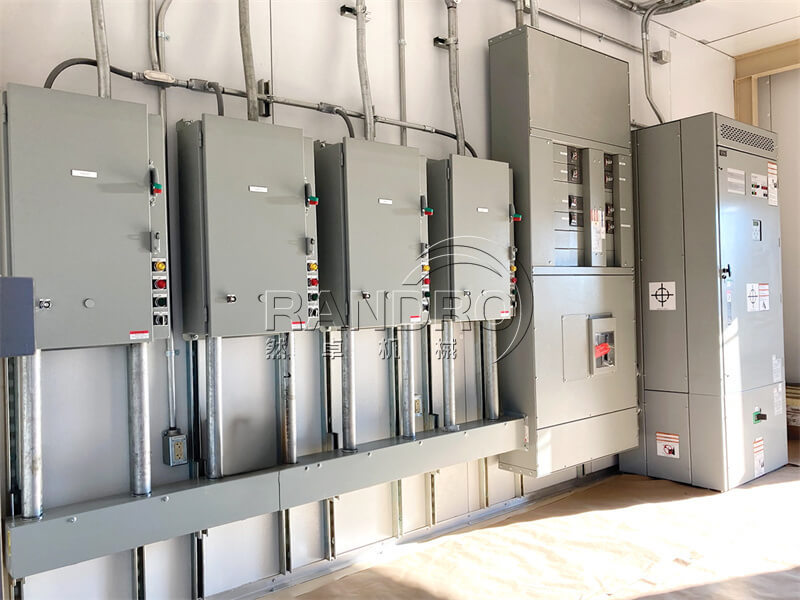

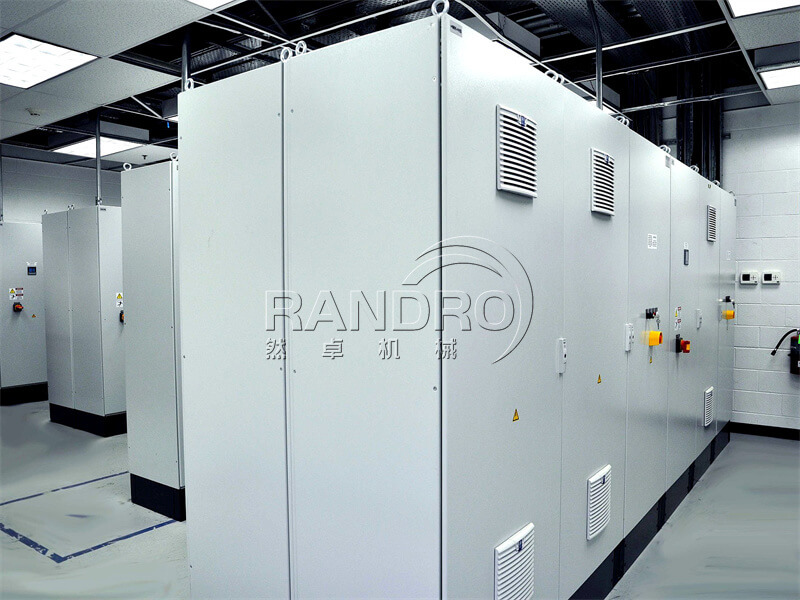

The profiles produced by electric control box roll forming machines are widely used in all industries requiring electrical equipment enclosures: such as high and low voltage distribution boxes and cabinets, switchgear, control cabinets, and capacitor compensation cabinets in the power industry; PLC control cabinets, inverter cabinets, and industrial computer enclosures in the industrial automation industry; wind power control cabinets, charging pile enclosures, and photovoltaic inverter cabinets in the new energy industry; network server cabinets and outdoor communication cabinets in the communication industry; and electrical control boxes and operating consoles for mechanical equipment in the machinery industry. Electric control cabinet roll forming machines are currently very popular. Please contact us for more information.
