Description

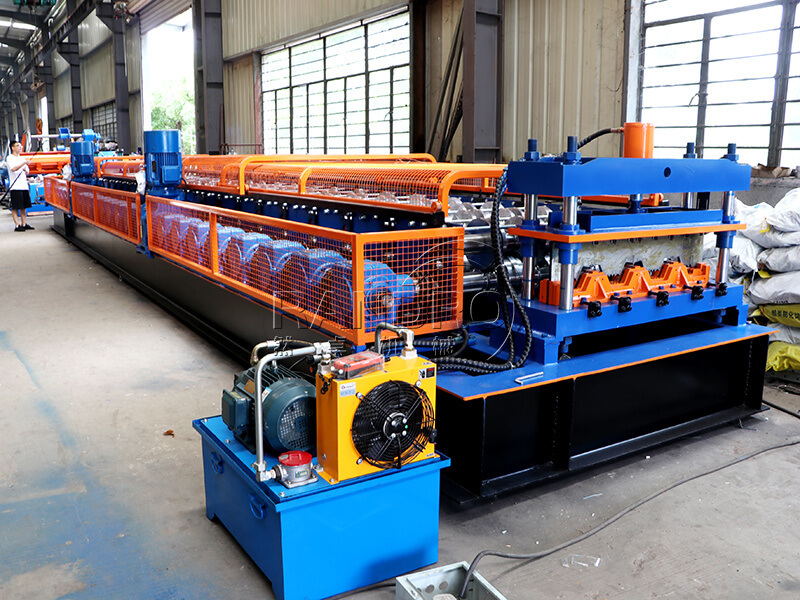

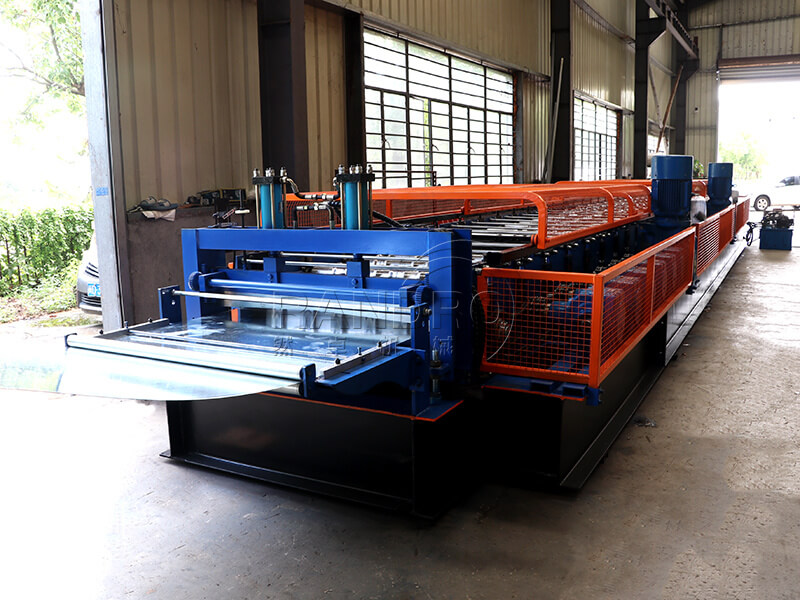

Randro Metal Steel Deck Roll Forming Machine, also called steel deck forming machine, floor deck cold roll forming machine and web deck making machine, is a high-efficiency automatic roll former to manufacture metal floor deck panels for concrete composite flooring.
This complete floor deck production line consists of decoiler, material leveller, roll forming section and hydraulic cutting system. Equipped with PLC touchscreen control, it enables automatic length setting and on-demand cutting. Precision quenched forming rollers ensure accurate profile size and smooth surface.
It processes galvanized steel coils of different thicknesses. The finished metal web deck has excellent load capacity, commonly used for high-rise buildings, commercial malls and industrial plant floors.
We support custom steel deck profiles and sizes. CE certified, with 1-year warranty and reliable global aftersales. Get factory test videos, technical drawings and competitive pricing for your steel deck roll forming project.
Main Technical Data
a. One 5-ton simple uncoiler (load capacity: 5T, non-motorized)
Coil inner diameter: 480–530 mm; coil width: 1000 mm
b. One set of entry positioning device;
Equipped with hydraulic front shear

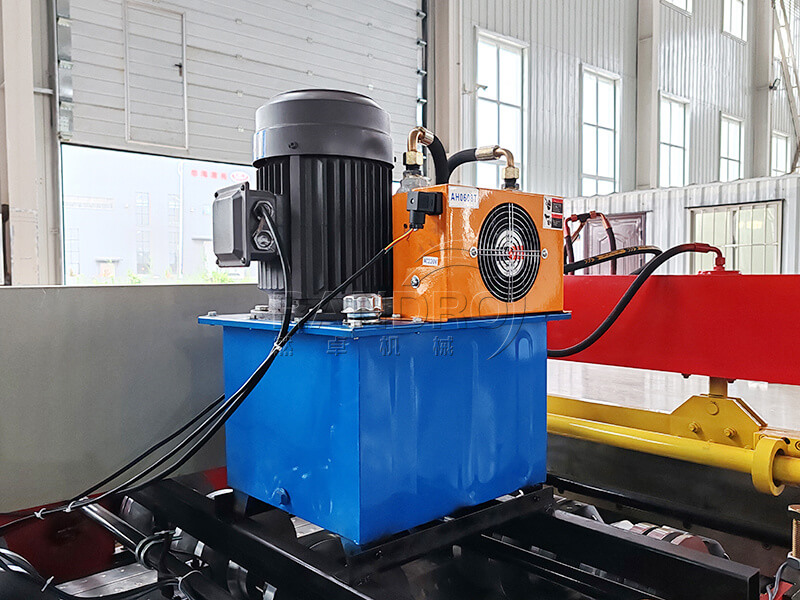

Hydraulic power: 5.5 kW (shared with rear shear)
c. One main forming unit;
Main motor power: 15 kW × 2 units (R-series motors); chain drive
Roller Stations:24 forming stations;
Forming speed: approx. 18–25 m/min;
Frame: H450 structural steel; side plates: T=22 mm
Shaft diameter: 95 mm (precision machined); material: 40Cr (quenched and tempered)

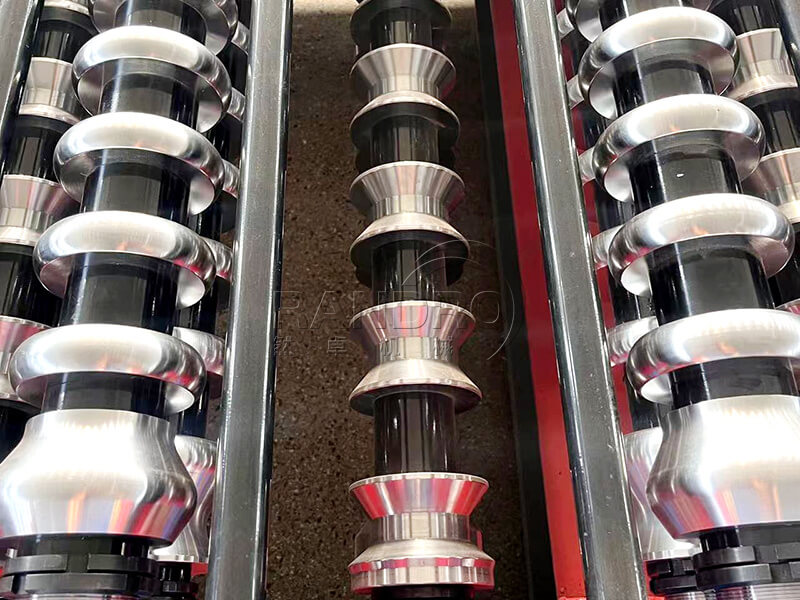

Roller material: 45# steel (precision machined, electroplated, and brushed/polished)

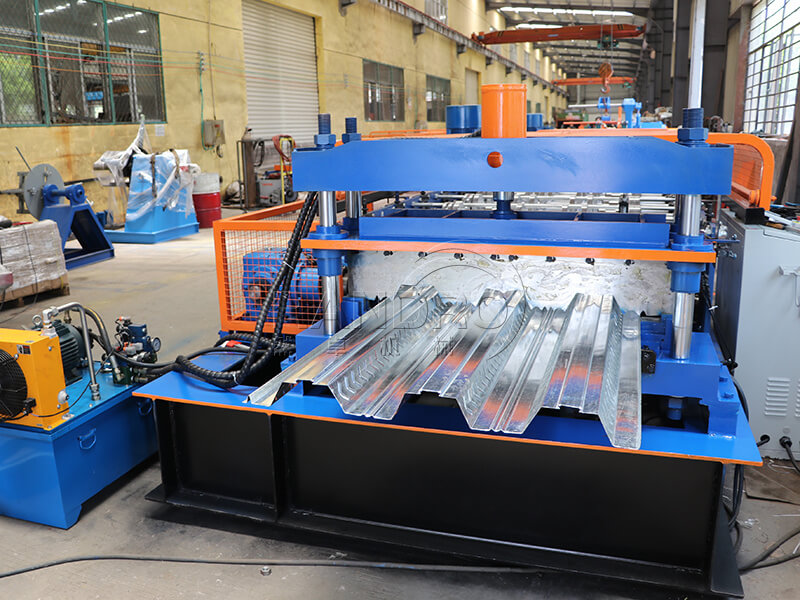

d. One set of hydraulic forming shear;
Post-cut operation; three-blade design with scrap separation cut
Hydraulic motor: 5.5 kW;
e. One computer control console;
Controls quantity and automatic cutting length;
Components include: PLC (Siemens), touch screen (Siemens), encoder (Omron), frequency converter
(Schneider/Delta), etc.;
Cutting length tolerance: ≤±2 mm.
f. Three finished product support racks (non-motorized)
Details
Workflow
Decoiler
Straightening
Punching
Forming
Run out table
Profiled
Finished Product
Main Components
Hydraulic Decoiler with coil car
Feeding Guide
Leveling System
Roll Forming System
Hydraulic Stop Cutter
Control System
Run-out Table

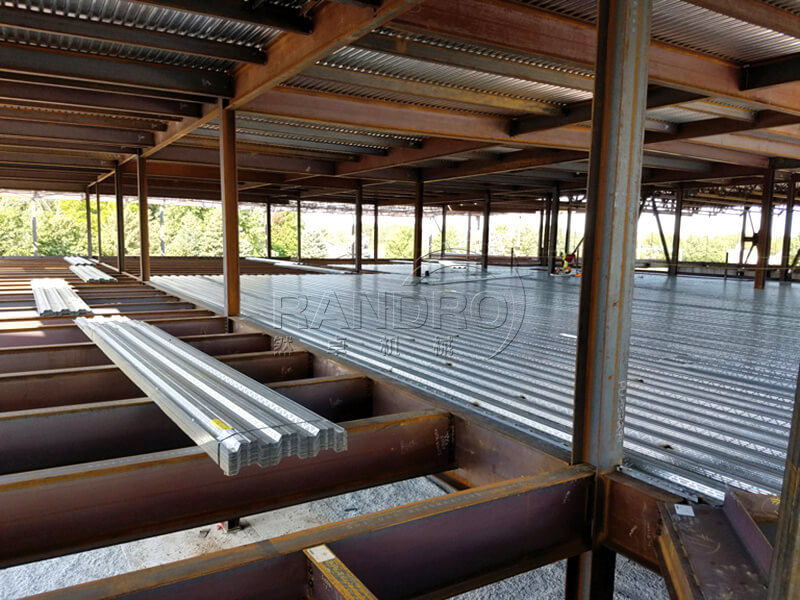

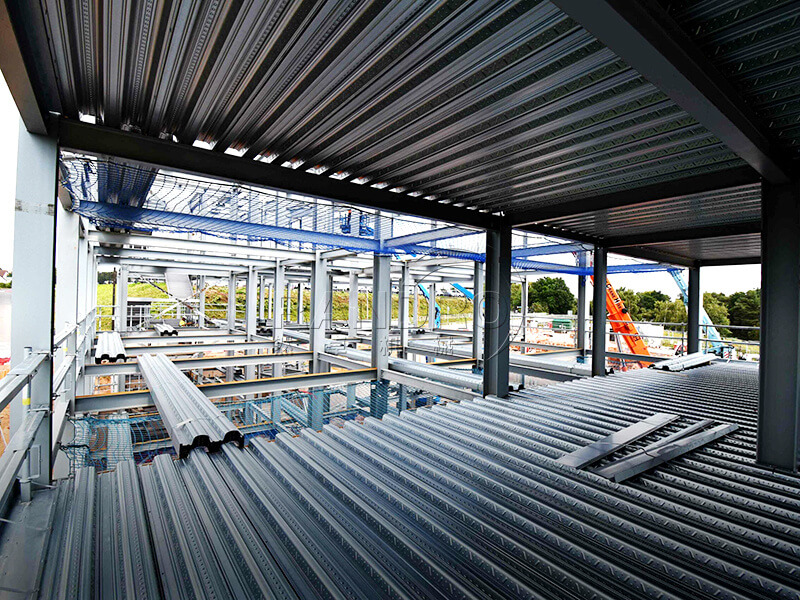

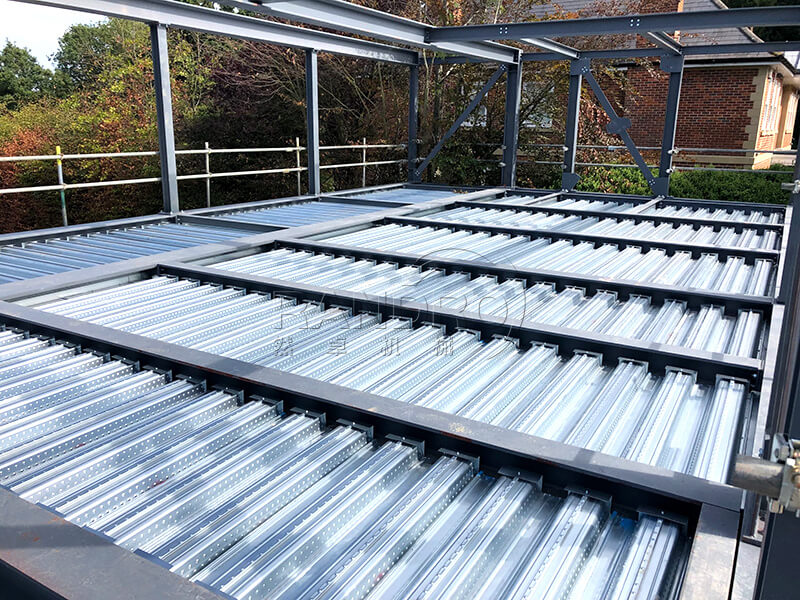

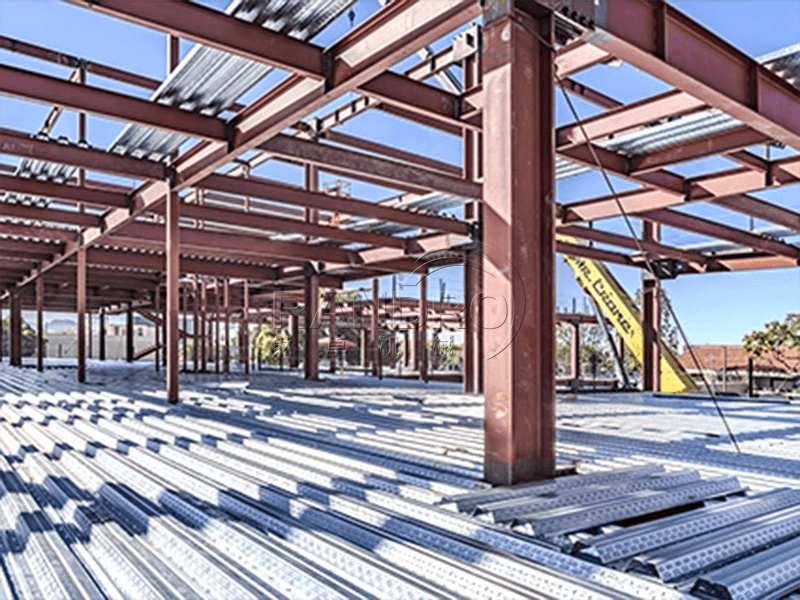

Application
