4m/6m/8m Hydraulic Folding Machine

Description

CNC metal sheet hydraulic folding machine, hydraulic model, customizable to 4m, 6m, and 8m lengths, with a maximum slitting and bending thickness of 1.0mm. The total power of the machine is 9.42kw, providing ample power. This hydraulic folding machine’s slitting device can slit steel plates, stainless steel plates, aluminum plates, and other sheet materials, allowing for bending and folding into desired shapes.

Characters

Product Photos

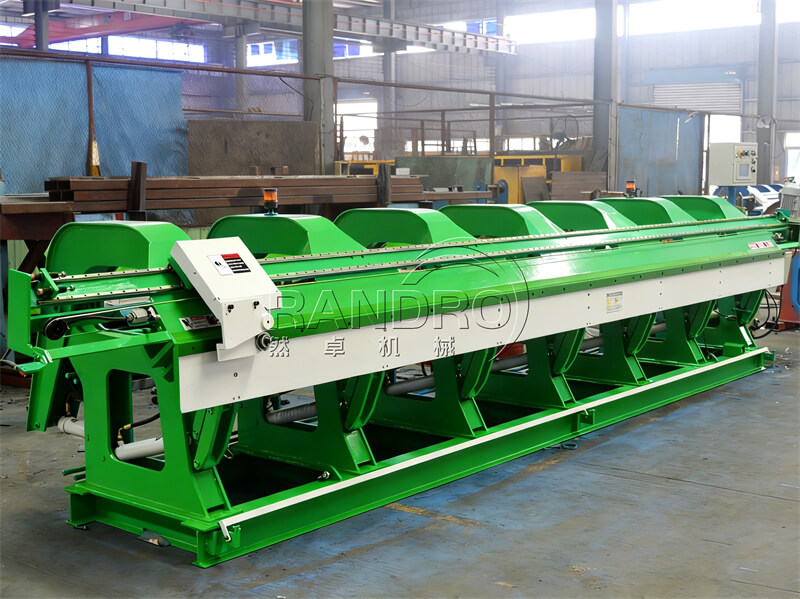

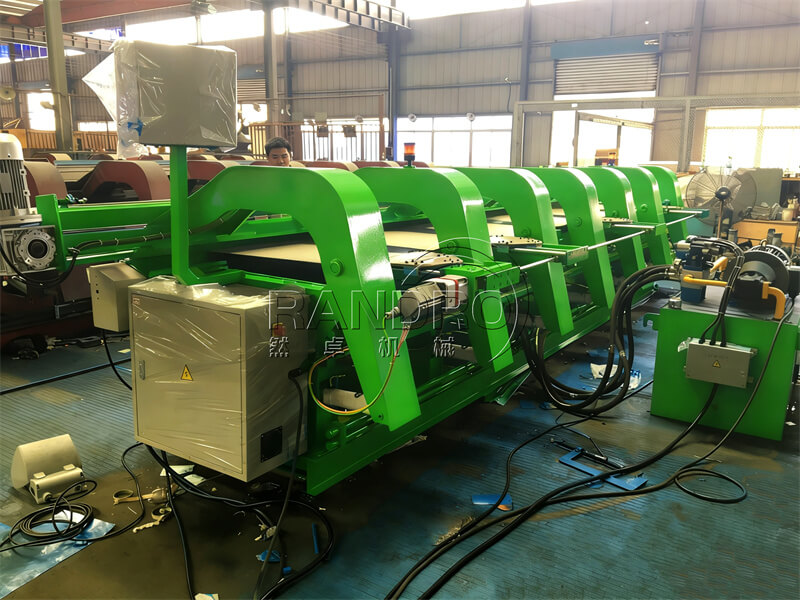

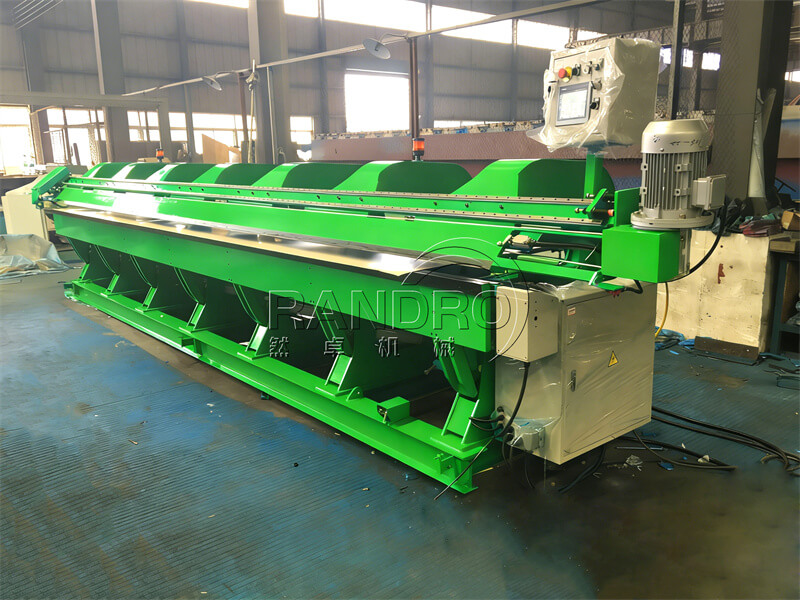

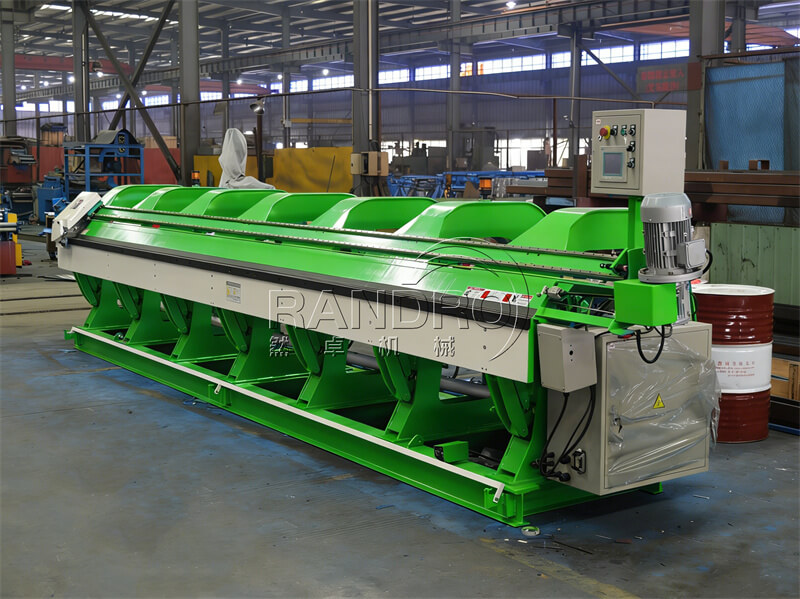

As shown in the picture, this is the exterior of the hydraulic metal folding machine. The system language is English by default, and the color can be customized according to your needs. The machine is large and sturdy, weighing approximately 3000kg, and can be transported in a 20hp container.

Folding Styles

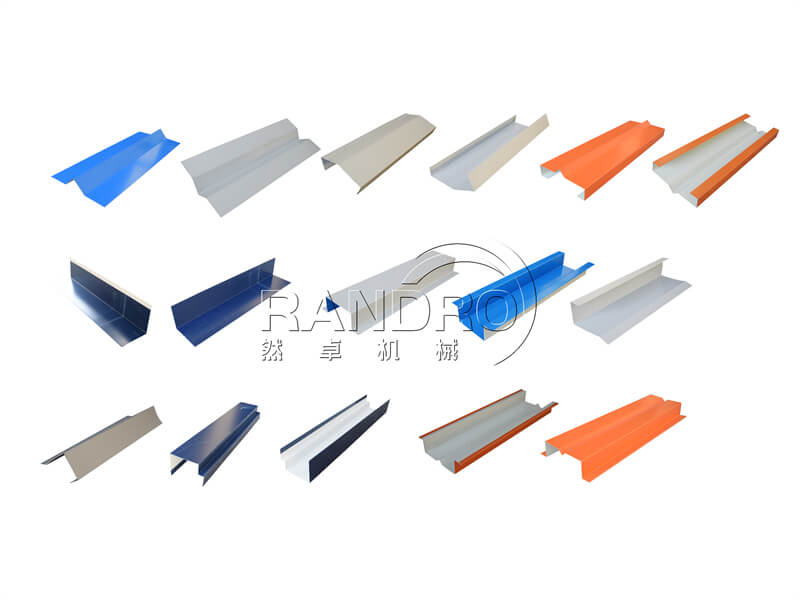

The image below shows some of the foldable shapes that our hydraulic folding machine can produce. Due to limited display space, please contact us for specific shapes. Our product is highly functional, integrating slitting and bending, making it the best choice for those who need both functions. Furthermore, it boasts rapid production speed, requiring only one person to operate, reducing labor costs and enabling mass production.

Structural Analysis

More Parameter

1)For Steel sheet; Aluminum; Stainless steel

2)Thickness: Max.1.0mm

3)Feeding width: Max. 1000mm

4)Driven by Servo motor, pump motor: 0.82KW

5)Working length: 4000mm, 6000mm, 8000mm

6)Press clamp:5 units,7 units, 9 units

7)Weight:or for hydraulic station7.5KW(Located inside)

8)Weight:Approx3000kg

9)Bending range:0-125 degree

10) Depth of throat:1000 mm(Max. working width of material in clamp)

11) Hinge:5 groups

9) Total power:9.42KW (7.5KW+1.1KW+0.82KW)

10)Outline dimension(Length×Width×Height):5800×1700×1500 (For reference only)

1) Type Of Blade : Slitting wheel
Diameter:80 (Enough)
Material:Cr12MoV

2) Drive system:Motor driving, 1.1KW
Guiding device:Steel rope circling

3) Slitting speed:Approx.0.8m/s

Slitting distance: Through steel rope circulation.

1) Max. Bending thickness: 1.0mm

2) Max. Bending length: 6000mm

3) Max. Slit thickness: 1.0mm

4) Min. folding dimension:TBC

1)Capability:Max.16MPA

2)Capacity of oil tank: 170L

3)Power source:Hydraulic

1)System:Siemens PLC Control

2)Numerical control locating system:Siemens PLC Control

3)Operating table:Touch Screen

4)Angle programmer:Encoder test

5)Slitting control:Manual

6)Emergency stop: e-stop button+ e-limit+ foot switch (right heavily)

Slitting wheels on folding machine
