EPS/Rockwool Sandwich Panel Machine

Description

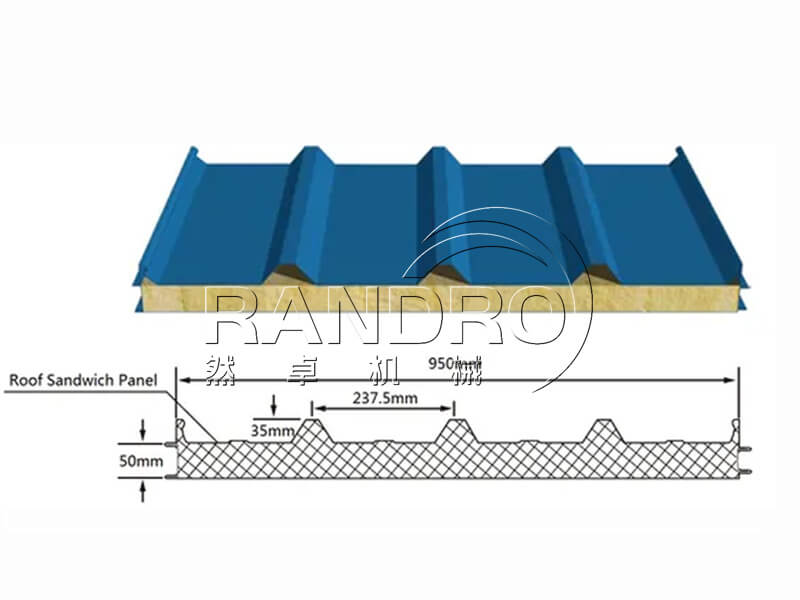

RANDRO EPS/rockwool sandwich panel roll forming machine produces three-layer composite panels with trapezoidal or corrugated color-coated steel sheets on either side and EPS foam or rockwool as the core. This rockwool sandwich panel roll forming machine is a versatile machine capable of producing a variety of panel shapes (such as flat and corrugated panels) and joints (such as tongue-and-groove). It features automated, continuous production and high efficiency. Currently, the most popular panel widths are 950/970 mm, with thicknesses ranging from 50 mm to 300 mm. The EPS/rockwool panels produced by this production line are highly fire-resistant, heat-insulating, and waterproof, making them widely used in cold storage, industrial plants, container buildings, warehouses, and other structures.

Characters

Details

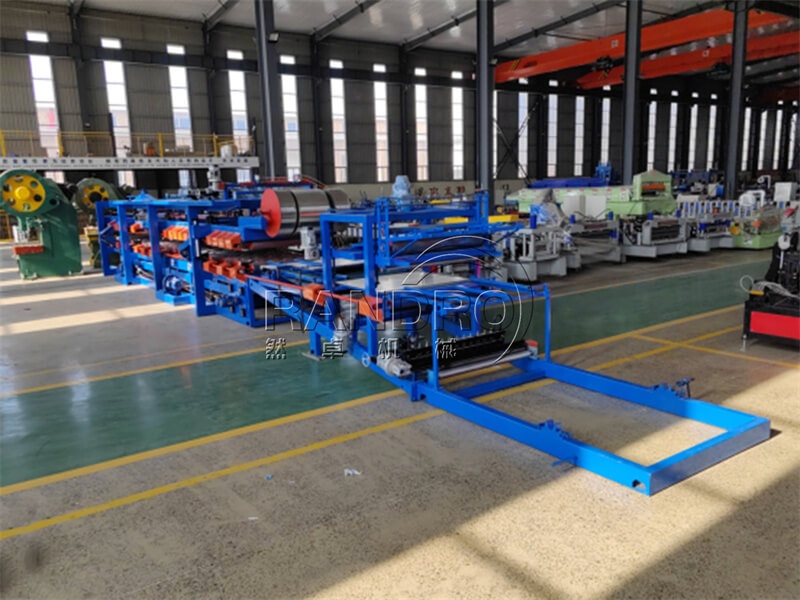

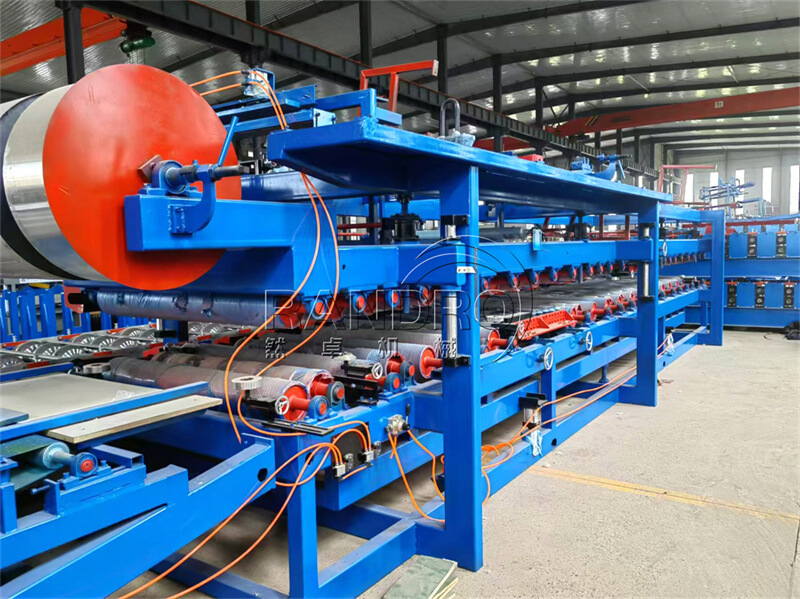

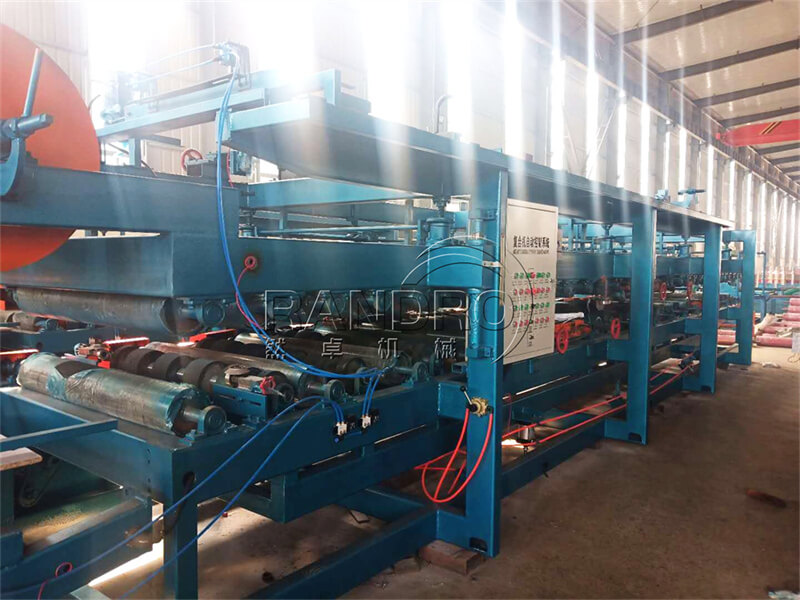

The rock wool foam sandwich composite panel forming machine (often called a composite panel machine or sandwich panel equipment) is an automated production line primarily used to produce sandwich composite panels with metal surface materials such as colored steel plates and a core layer of thermal insulation materials such as rock wool and foam (such as EPS). Its core process integrates forming, gluing, laminating, and cutting. The main machine length is commonly 8 meters and 9.3 meters; the total production line length is approximately 38-50 meters; the total power is approximately 25-32 kW.The production speed is generally 0-8 meters/minute, with stepless speed adjustment. Product widths range from 950mm, 1000mm, and 1200mm. Product thicknesses are typically 50-200mm for rock wool panels and 40-300mm for foam panels. Annual production capacity is approximately 500,000-600,000 square meters. The equipment weighs approximately 15-20 tons and is controlled by a PLC and touch screen.

Workflow

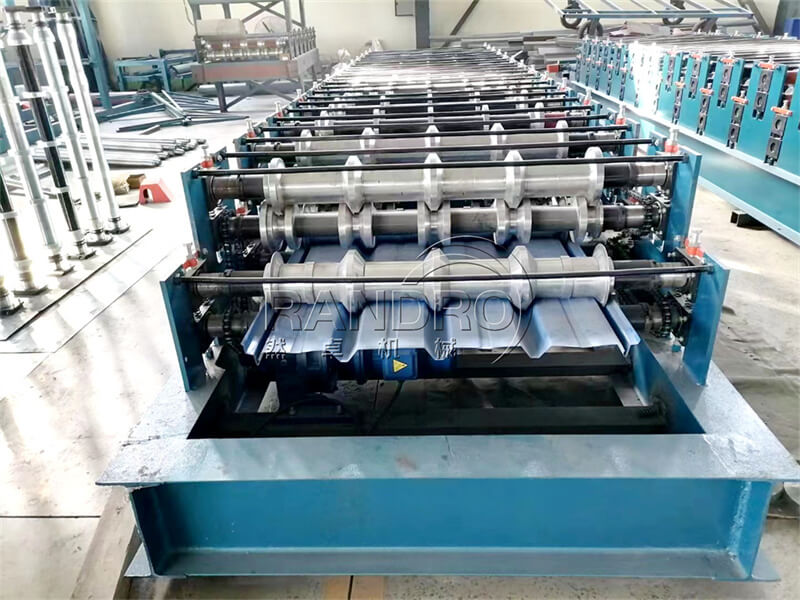

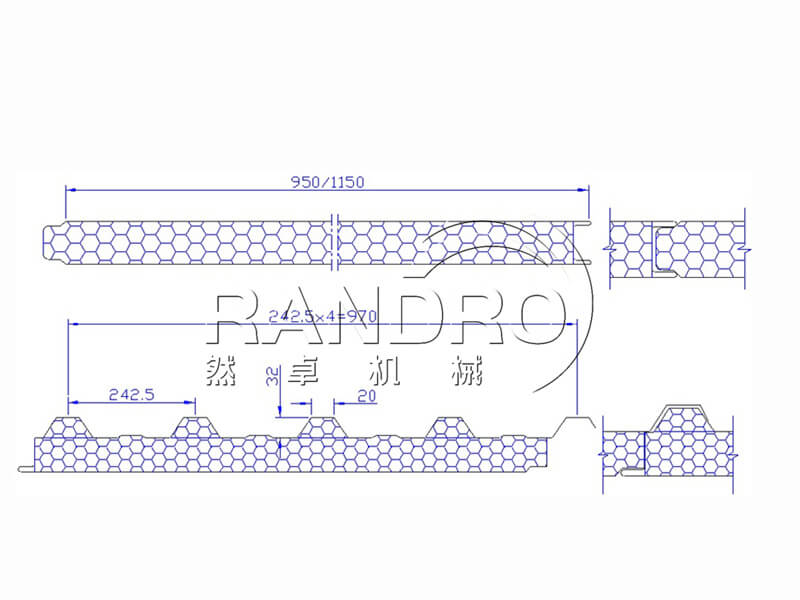

Profiled

When selecting a machine, there are two types: “Type 5″ and “Type 7” machines, based primarily on the machine’s functional configuration and the types of panels it can produce.
Type 5 machines: These typically produce basic panel types such as 950 foam panels, 980 self-clinching panels, lapped panels, and snap-fit ​​panels.
Type 7 machines: Based on the Type 5 machine, they offer enhanced functionality, typically adding the ability to produce more complex panel types such as 950 rock wool panels and steel-banded edge boxes.

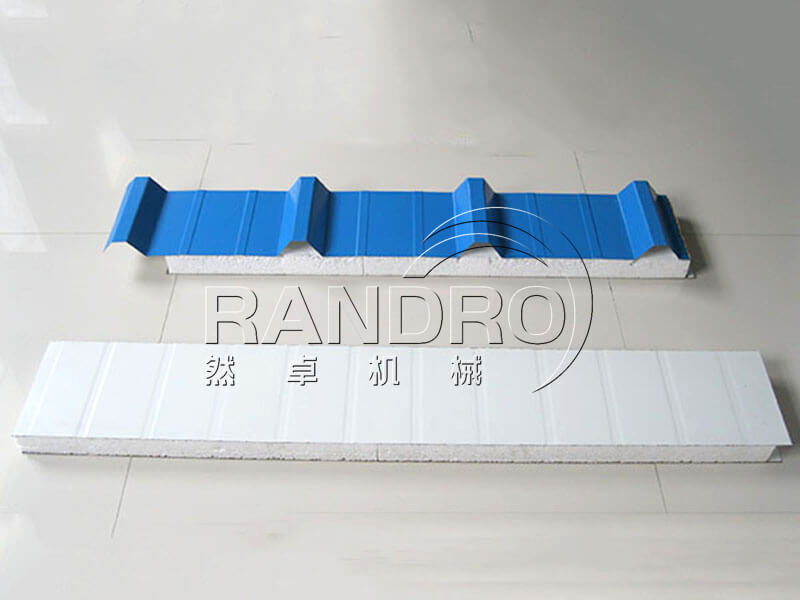

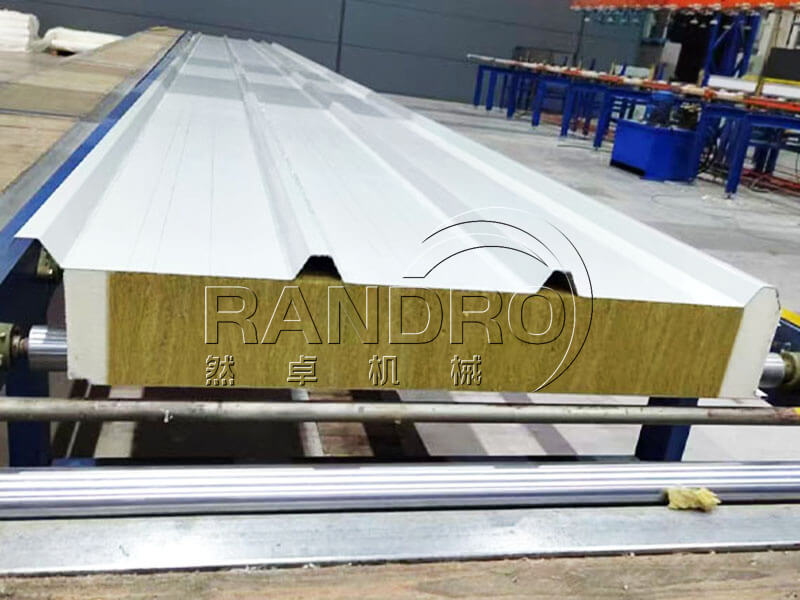

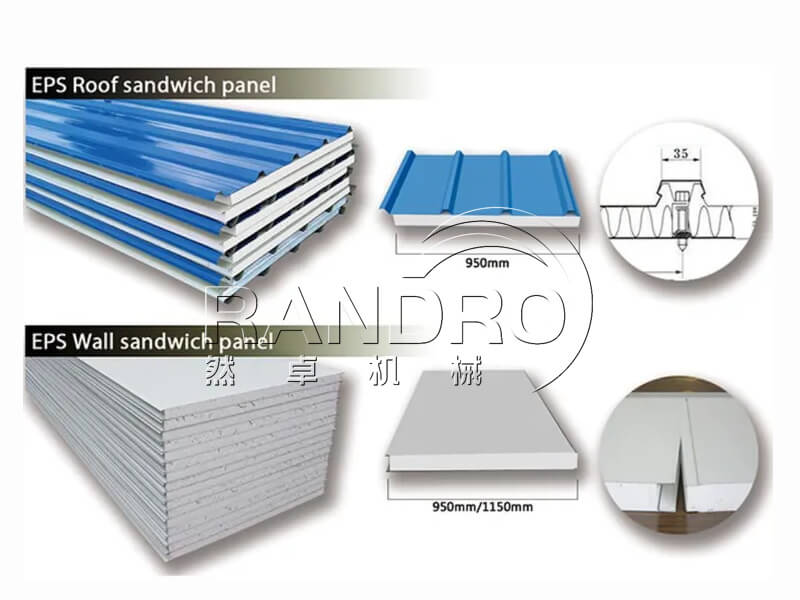

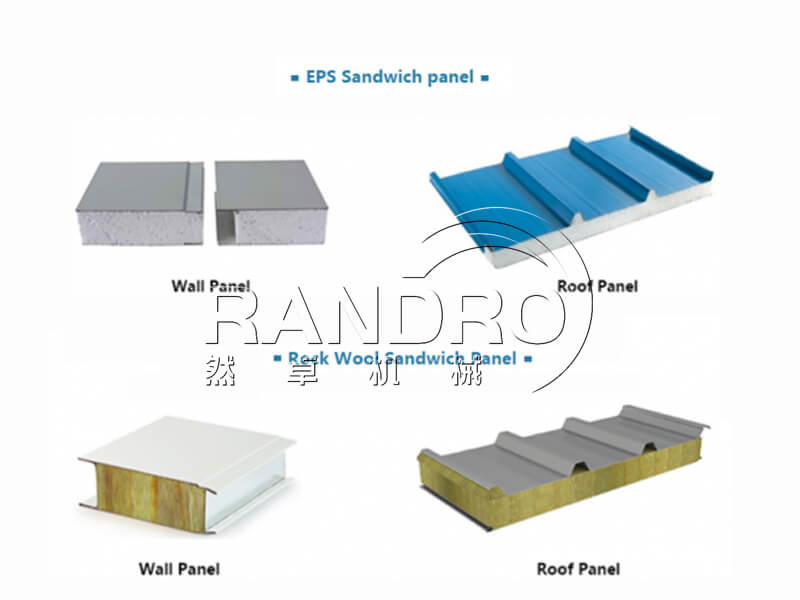

Finished Product

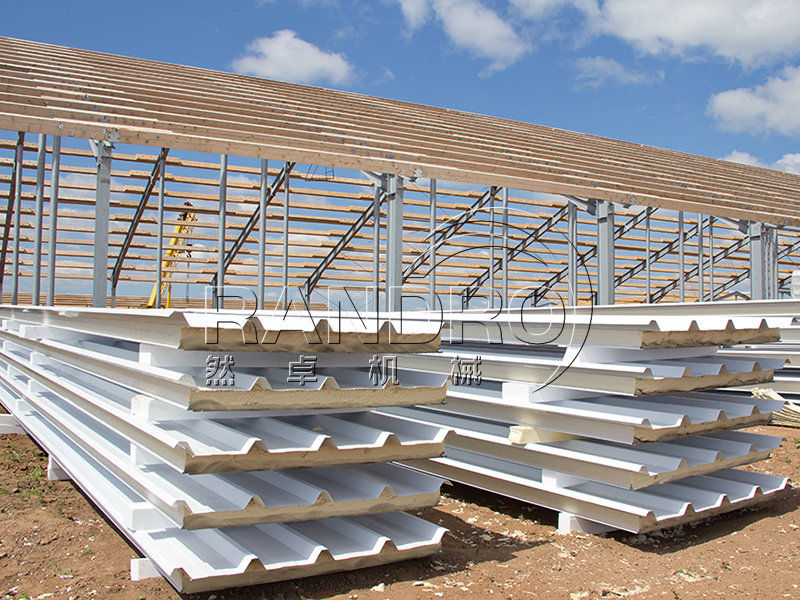

The finished products of EPS/rock wool sandwich board production line have the advantages of light weight, heat insulation, sound absorption and sound insulation, fast construction and beautiful appearance. At present, the application of rock wool EPS foam board is not only in the construction industry, but also in the demand for fire protection and heat insulation in cold chain logistics, petrochemical industry and other industrial fields, which also provide stable support for the rock wool board market. At present, the sandwich board roll forming machine production line is popular in the following countries: India, Indonesia, Japan, South Korea, Vietnam, Malaysia, Germany, Britain, France, Italy, the United States and Canada, Turkey, Saudi Arabia, Mexico, Paraguay, etc.

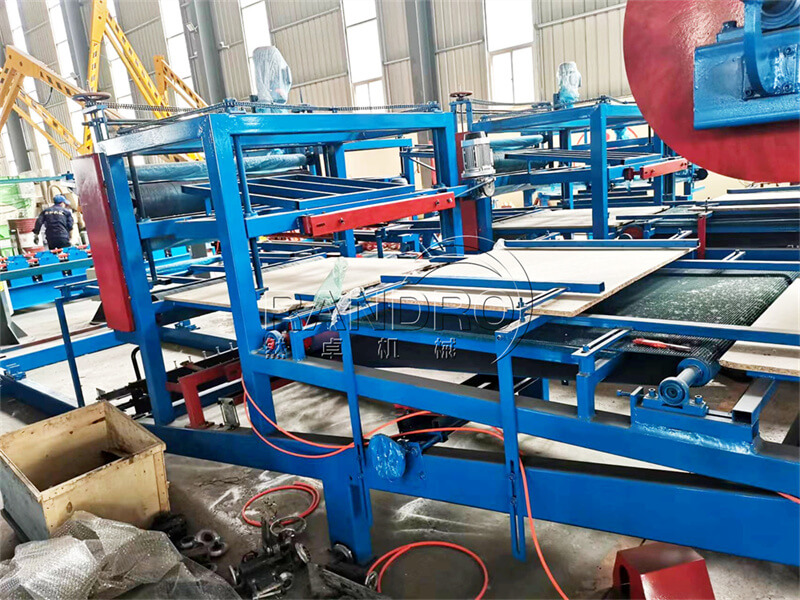

Main Components

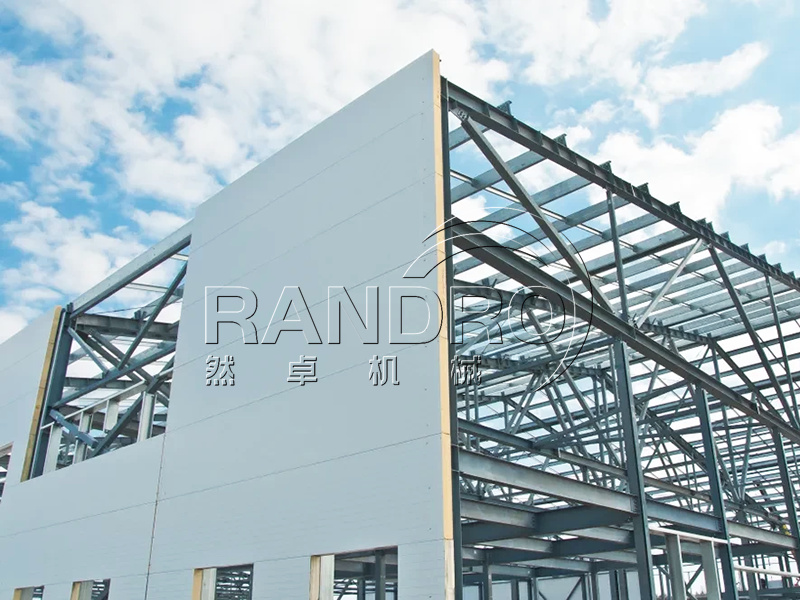

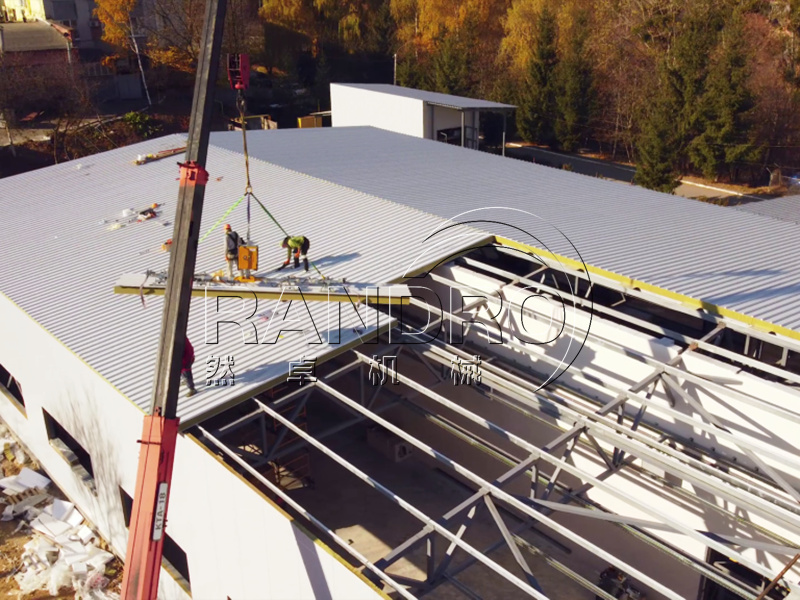

Application

Guide to selecting and preparing a rock wool and EPS foam board production line:

1. Workshop requirements: For long production lines, a workshop of 50 meters long and 10-15 meters wide is required, equipped with a 5-ton or larger overhead crane.
2. Staffing: Approximately five operators are required.
3. Necessary preparations: Your own air compressor and two-component adhesive (black and white) are required for bonding.
4. After-sales service: We provide free video technical guidance and installation instructions. Please contact us for specific consultations if you require on-site training or after-sales service. Randro offers lifetime maintenance services.
