Description
This fast speed U stud purlin roll forming machine features upgraded configurations compared to ordinary U-channel purlin machines. All components use upgraded materials, especially the high-speed non-stop cutting device, which significantly increases production speed and allows for mass production. This U-channel purlin machine can process a variety of raw materials, with customizable feed widths and a thickness range of 0.2-1.0mm. Please see the video below for specific production details.
Characters
Customized Thinckness
Non-Stop Cutting
Rocker Arm PLC
High Productivity
Easy Operation
Long Lifespan
Details

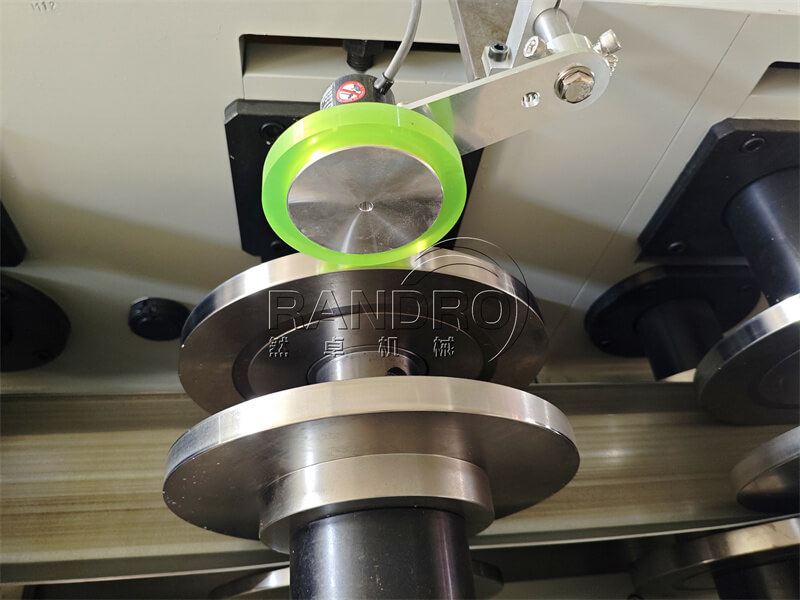

This high-speed U-stud purlin forming machine features fast, non-stop cutting, a 16mm thick gantry frame, an Omron meter counter, and chrome-plated, hardened 45# steel forming rollers. All aspects of the machine have been upgraded to ensure the highest quality, ease of use, and exceptional durability.
Profile

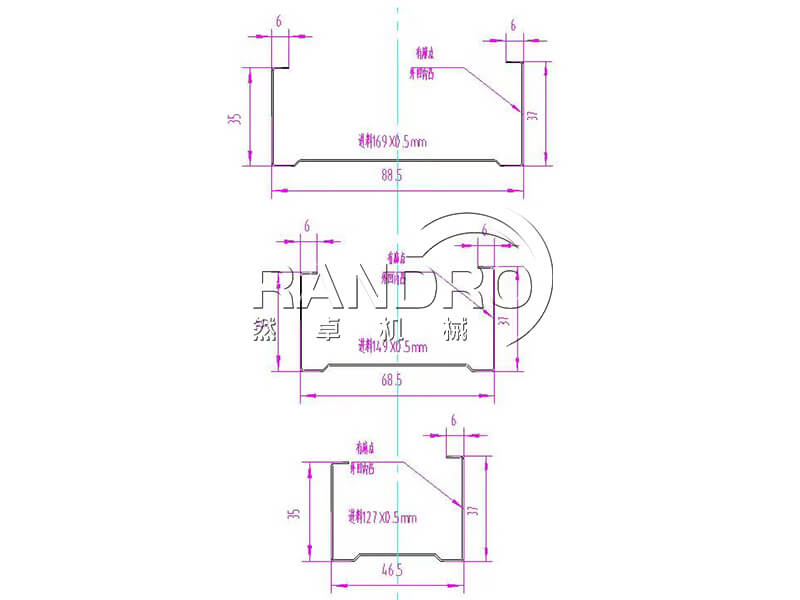

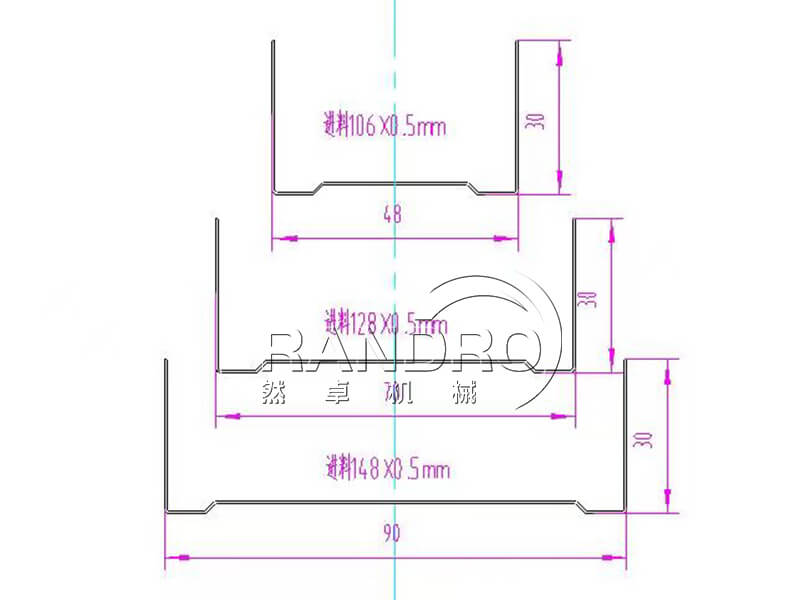

Randro factory can customize machines according to customers’ specific drawings. For example, this U-channel purlin machine can be manufactured based on the drawing’s shape, feeding width, thickness, and the customer’s requirements for the machine’s appearance. If a U-shape is not needed, other shapes such as C-shape, Z-shape, or various irregular shapes can be customized. Alternatively, one machine can be designed to produce multiple specifications; please contact us for details. Our fast U-stud purlin machines have already been sold to the Philippines, Malaysia, Brazil, Colombia, the United States, Saudi Arabia, Turkey, Ghana, Zimbabwe, Kazakhstan, Russia, and other countries. If you have any needs, please feel free to contact us for customization.
Finished Product

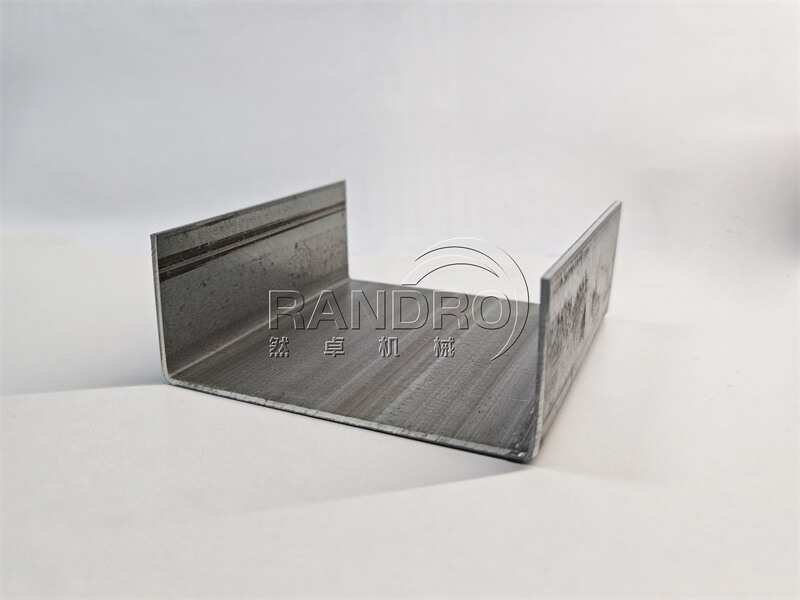

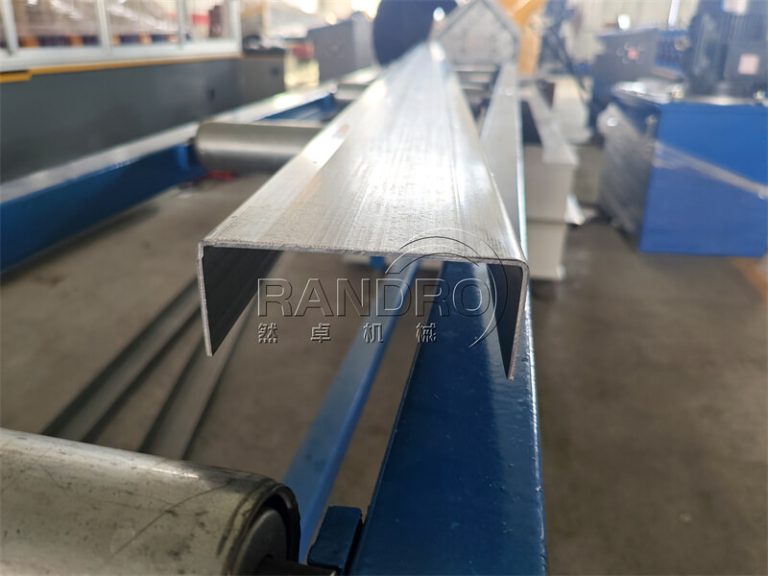

The finished product of this high-speed U-shaped purlin forming machine is shown in the picture. It uses thicker steel for processing, resulting in a smooth cross-section, perfect forming, no overall deformation, and precise cutting. Samples of various other finished products are also available; please contact us for more information.
Main Components

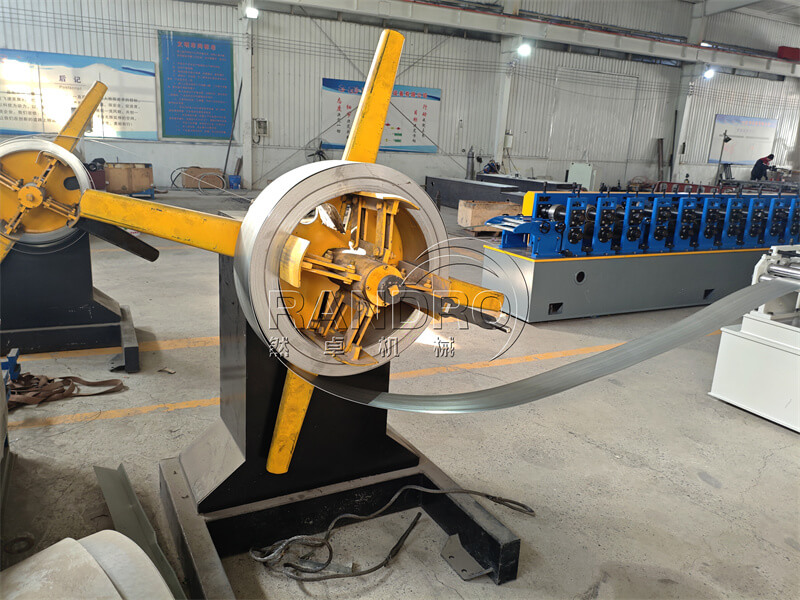

Decoiler Machine

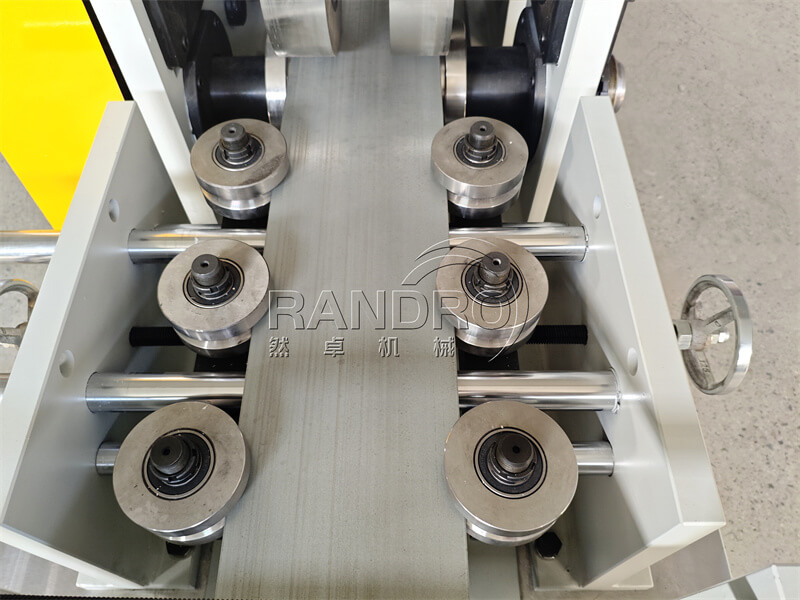

Feeding Guide

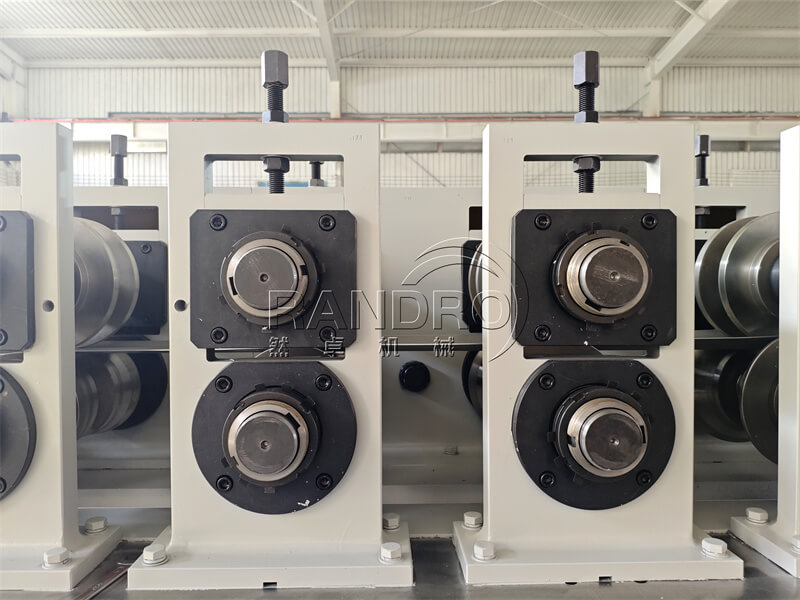

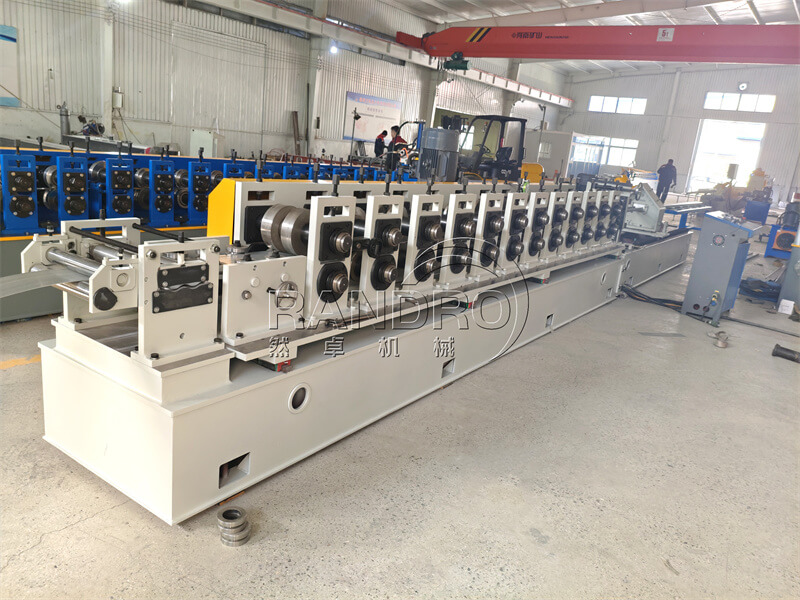

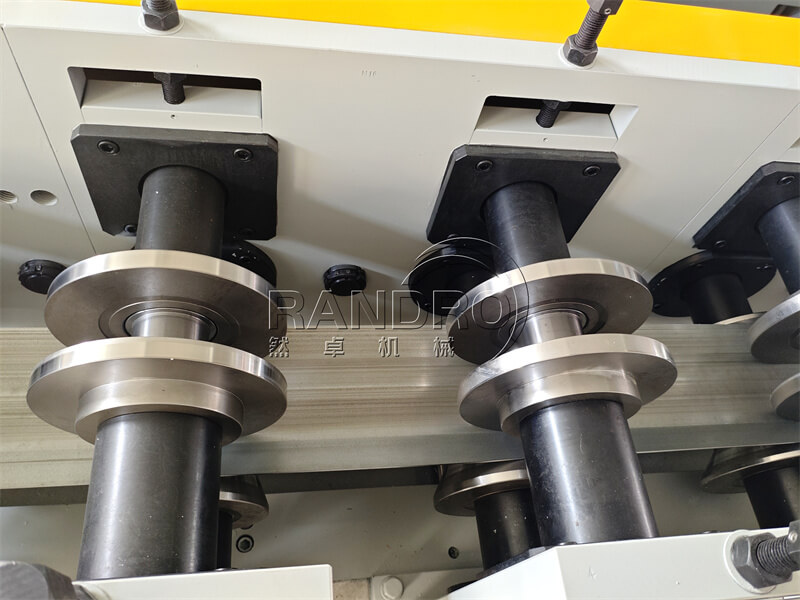

Roll Forming Unit

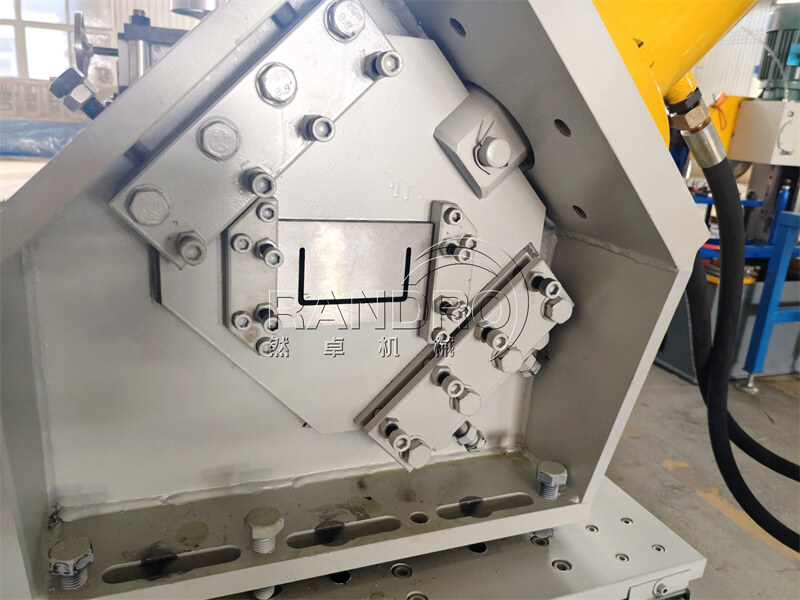

Non-Stop Cutting
Control System

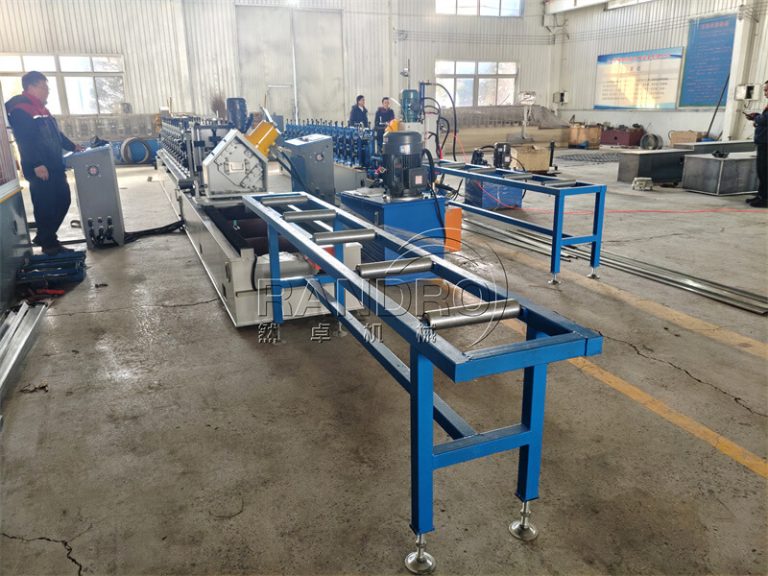

Run-out Table
More Images

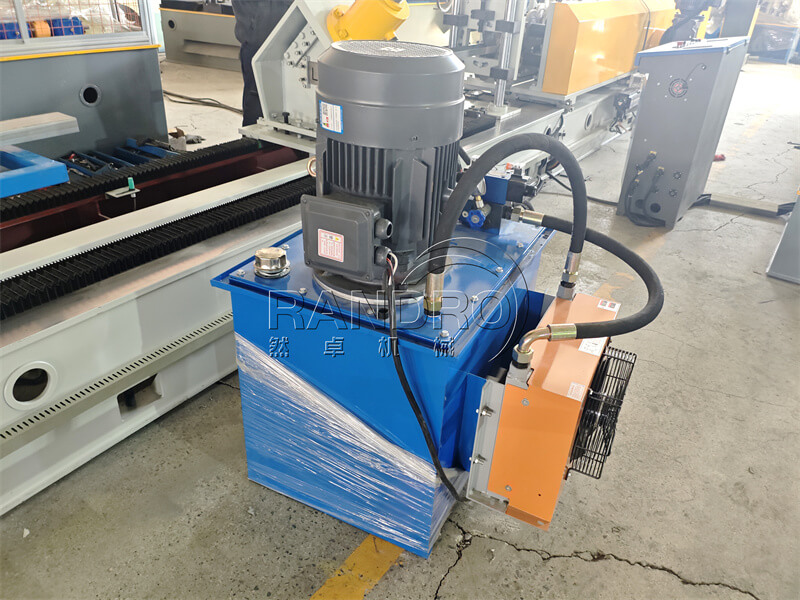

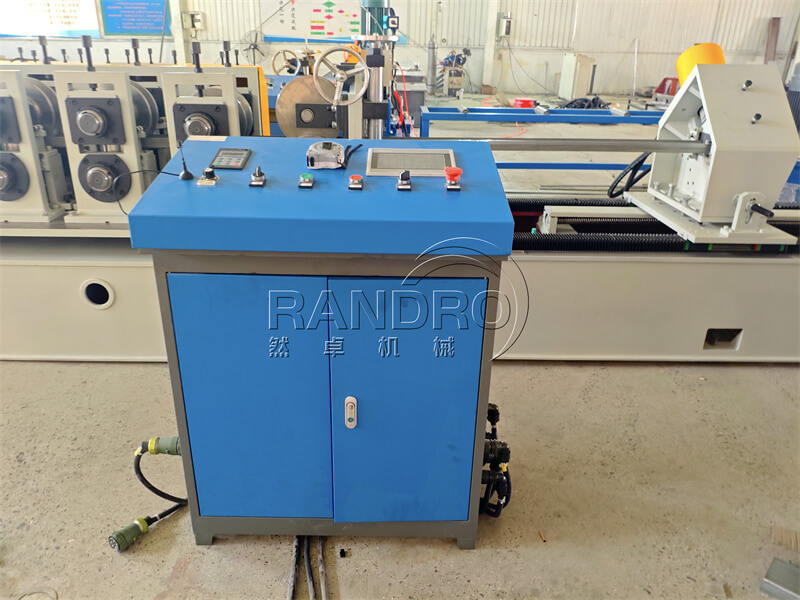

The U channel purlin machine is equipped with an independent control cabinet for easy movement and placement. The control screen language supports customization, offering dual-language options, and combines touchscreen and button controls for convenient operation. A high-power hydraulic pump station with an air-cooling device ensures long working hours and prevents damage. Combined with an automatic unwinding machine and a material leveling device, it provides a better foundation for material handling.
Application
